Ikelite Underwater Housing Nikon Z6, Z6 Mk II, Z7, Z7 Mk II

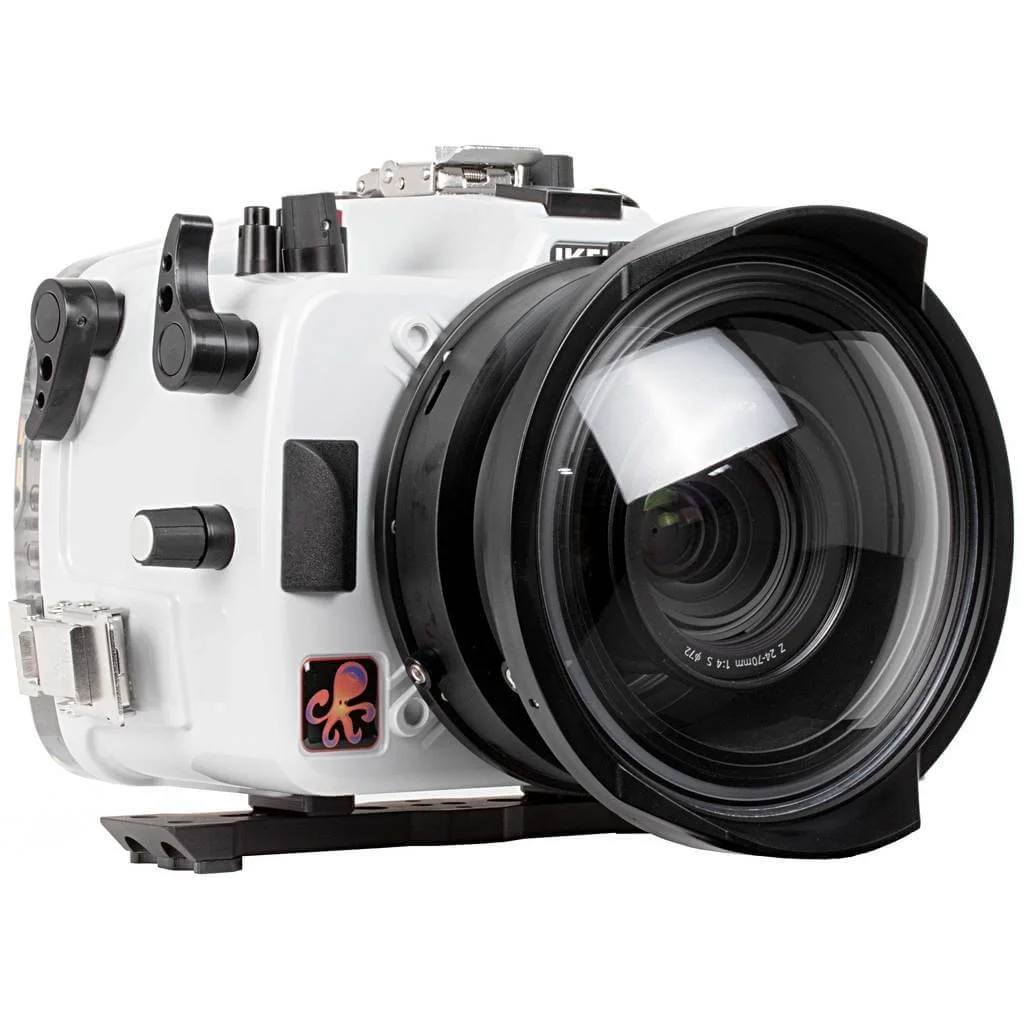

Ikelite 71063 200DL Housing for Nikon Z6, Z6 Mk II, Z7, Z7 Mk II Mirrorless Cameras
Product Details
A full-featured and durable waterproof housing from Ikelite for the Nikon Z6 & Z7 mirrorless digital cameras. Suitable for scuba, snorkel, surf, pool, and any application in or around the water.
This housing requires the addition of a compatible DL Lens Port for waterproof operation. Lens Port not included.
View the DL Port Chart for Nikon Z Mount…
Nikon Z7 Mirrorless Camera
Nikon’s first full-frame mirrorless interchangeable lens camera is finally here. The weather-sealed body packs a 45.7-megapixel BSI-CMOS sensor and is capable of continuous shooting up to 9 fps. Its hybrid AF system and 5-axis in-body image stabilization are usable when shooting stills or 4K ultra HD video.
In addition to the series of new Z mount lenses to be released progressively, Nikon shooters can also use their favourite F mount lenses thanks to the new FTZ Adapter.
Nikon Z6 Mirrorless Camera
Nikon’s midrange counterpart features a 24.5-megapixel BSI-CMOS sensor, a hybrid AF and 5-axis in-body image stabilization. Video performance has been heralded as better than the Z7 and similar to the Sony Alpha A7 III.
Nikon Z6 II Mirrorless Camera**
The 2020 release boasts improved autofocus, upgraded video capture, and faster continuous shooting.
Nikon Z7 II Mirrorless Camera**
As of Q1 2021, the Z7 II is the highest-resolution model in the Z-series mirrorless line-up. This model is boosted with a second Expeed 6 image processor for faster 10fps continuous shooting, improved autofocus, and 4K/60p video with a slight crop.
** Housings produced before January 1, 2021, require a slight modification for use with the newer Z6 II and Z7 II camera bodies.
Lens Ports
This Ikelite housing features the robust Dry Lock (DL) port system. “Dry Lock” refers to the placement of the O-ring on the outside of the port mount. This improves visibility and reduces the chances of water dropping onto your precious camera sensor. Ikelite DL ports are the lightest on the market, yet robust and capable of standing up to rough surf. Attachment is quick and secure. A system of extensions can accommodate a huge variety of lenses with ease.
Most popular zoom lenses and select lens focus rings can be engaged using simple gearing that puts adjustment right at your fingertips. A large, soft-touch knob on the side of the housing makes fine-tuned adjustments a breeze. Zoom and focus gears differ depending on which lens you are using. Zoom gears are sold separately.
View the DL Port Chart for Nikon Z-Mount…
Vacuum System
The included vacuum valve allows you to pressurize the housing to check for leaks prior to putting your expensive equipment in the water. Use of the vacuum valve requires a compatible Vacuum Pump with Gauge # 47011, sold separately.
There is no greater assurance than being able to see your camera and O-ring seal through the back of the housing. Ikelite’s signature open-groove design suspends the rear O-ring in a natural position that is easier to maintain and more reliable than forcing the O-ring into a channel. Once the housing is closed you can see the O-ring form a solid, waterproof seal.
M16 Accessory Port
The spare M16 threaded accessory port provides an attachment point for third party accessories including HDMI bulkheads.
TTL Exposure
This housing supports your choice of shooting manual strobes or adding Ikelite TTL electronics depending on your application. The included manual hotshoe with Ikelite ICS-5 bulkhead supports manual strobe exposure with a wide variety of strobes including Ikelite, SEA&SEA, INON, and others.
You can enjoy the fastest and most accurate TTL exposure on the market by adding the Ikelite DL1 DS Link TTL Converter # 46056 and a compatible Ikelite DS strobe. The DL1 supports rear curtain synchronization and exposure compensation can be added or subtracted in the camera.
Controls and Set-Up
Shutter and AF-ON levers stand out with super sensitive and natural feeling curved levers. Both controls can be extended using the optional Trigger Extension # 4077.95 for more comfortable use when using a right-hand quick release handle.
All push-button controls are machined and hard anodized aluminium to reduce weight and resist salt build-up. The back of the housing is laser engraved with control symbols that will never fade or fall off.
The camera mount is front-loading for easy installation and removal. A small mounting plate attaches to the bottom of the camera and secures in the front of the housing. The camera mounting plate does not need to be removed from the camera for surface use or when changing the battery or memory cards. The mounting plate features a 1/4-20 threaded mount on the bottom so that it can be attached to a tripod on the surface.
Viewfinders
The included Ikelite Super-Eye Viewfinder provides an enhanced view of the camera’s optical viewfinder when viewed through a dive mask. The viewfinder removes quickly and easily for the attachment of an optional Straight Magnified Viewfinder (Type 1) # 6890.1 or 45° Magnified Viewfinder (Type 3) # 6891.3. The angle of a 45º viewfinder is more ergonomic when shooting underwater plus it provides a larger and brighter view than the standard Super-Eye.
Handling & Travel
The housing, tray, and handles have been optimized to reduce weight while maintaining strength and durability. The Right-Hand Quick Release Handle # 4077.02 (sold separately) can be added or removed depending on your needs. The precision-machined aluminium base features 1/4-20 tripod mounting sockets and additional mounting locations for future accessories. The base and handle can be quickly removed when breaking down your system for travel.
A 1/4-20 threaded mounting point is located front and centre on the housing above the lens port mount. This mount can be used to attach lightweight accessories like a focus light or a GoPro camera.
If you’re shooting with two strobes or lighting arms, then an Aluminium Top Handle # 4080.08 can be added to carry to and from the dive site. The rigid aluminium version provides additional mounting points for lighting and accessories.
Adding a dedicated focus light to your top mount or strobe arm is highly recommended for more accurate autofocus in low light settings.
Construction
Ikelite’s new ABS-PC blend front is durable, provides improved contrast and visibility, keeps your camera running cooler in the sun, and is significantly lighter weight than aluminium alternatives.
Every housing is made by Ikelite in the USA, individually inspected for fit, and water pressure tested to 60m (200 feet).
Non-Ikelite Strobes
SEA&SEA, INON, and Retra strobes with an electrical connection can be triggered in manual exposure modes using an electrical sync cord. Strobes without an electrical sync cord connection cannot be attached to this system unless slaved off of a hard-wired strobe.
Ikelite Non-Digital Strobes
Older non-digital strobes featuring an ICS-5 electrical sync cord bulkhead can be used with this system in manual exposure modes.
Fibre Optic
Fibre optic only strobes are not compatible with this installation. An external strobe must be connected by an electrical sync cord.
Remote Triggering
Strobes with remote slave capabilities may be triggered off of a flash attached to the housing by an electrical sync cord. Ikelite DS strobes support remote triggering using the Optical Slave Converter # 4405 or the Water Wizard system (manufactured and sold by Aquatica).
Compatibility
This housing is only compatible with Nikon Z6 & Z7 Mk I / Mk II cameras as shipped by the manufacturer. Unless otherwise noted, this housing does not accommodate the use of add-on grips, battery grips, eyepieces, LCD covers, or other accessories.
Housings produced before January 1, 2021, require Upgrade Kit for Nikon Z6 II Z7 II # 9295.09 to be used with the newer Nikon Z6 II or Z7 II camera bodies.
Differences in lens and control placement prevent other camera models from being used in or adapted to this housing. We are not aware of any other models which may be used in or adapted to this housing.
Specifications
60m (200′) depth rating
Compatible with DL system lens ports
Controls are provided for all important camera controls;
Controls are not provided for Joystick up/down/left/right, Fn1, Fn2, Diopter adjustment dial, or DOF button
1/4-20 thread base mounts with 3.5″ spacing
Slightly positive buoyancy in freshwater
Actual buoyancy varies depending on the choice of lens and port
2.15 kg (4.7 lb)
220 x 175 x 165 mm (8.75 x 6.875 x 6.5″)
Vacuum valve included (pump sold separately)
Included Ikelite ICS-5 bulkhead connector with manual hotshoe for the reliable electrical triggering of underwater strobes; Optional TTL accessories provides automatic exposure with compatible Ikelite DS strobes
ABS-PC construction is fundamentally corrosion-resistant
Made in the USA; Individually inspected for fit and water pressure tested to depth
2 year limited warranty
In the Box
Housing
Rear o-ring # 0132.61
Front o-ring # 0132.45
Zoom Gear Retainer # 75900
Waterproof Bulkhead Cap # 9104.7
Port Hole Cover # 0200.92
Waterproof Bulkhead Cap # 9104.7
Base with Left-Hand Quick Release Handle # 4077.67
Tool for Zoom Gear Retainer # 0945.06
.050″ Hex Key # 0945.11
1/16″ Hex Key # 0945.16
Silicone Lubricant # 5020
Optional Accessories
Spare Rear O-Ring # 0132.59 Carry a backup in case the original seal becomes damaged.
Spare Front O-Ring # 0132.45 Carry a backup in case the original seal becomes damaged.
Vacuum Pump with Gauge # 47011 Pressurizes the housing to check for leaks prior to entering the water.
Right-Hand Quick Release Handle # 4077.02 Makes a double tray for easier handling and a second attachment point for strobes or lights.
Trigger Extension # 4077.95 Recommended if using the Right-Hand Quick Release Handle. Brings shutter and/or AF-ON lever out to handle for more comfortable use.
DL1 DS Link TTL Converter # 46056 Fast, accurate, automatic TTL strobe exposure when used together with compatible Ikelite DS strobes.
45º Magnified Viewfinder (Type 1) # 6891.3 Brighter, larger, and more ergonomic positioning when shooting underwater. Rotates for landscape or portrait shots.
Adding an external strobe or video light enhances your photos’ colour and sharpness underwater. If you will be shooting below 13m (45 ft) or in an indoor pool, your photos will be predominantly blue-green without an artificial light source.
