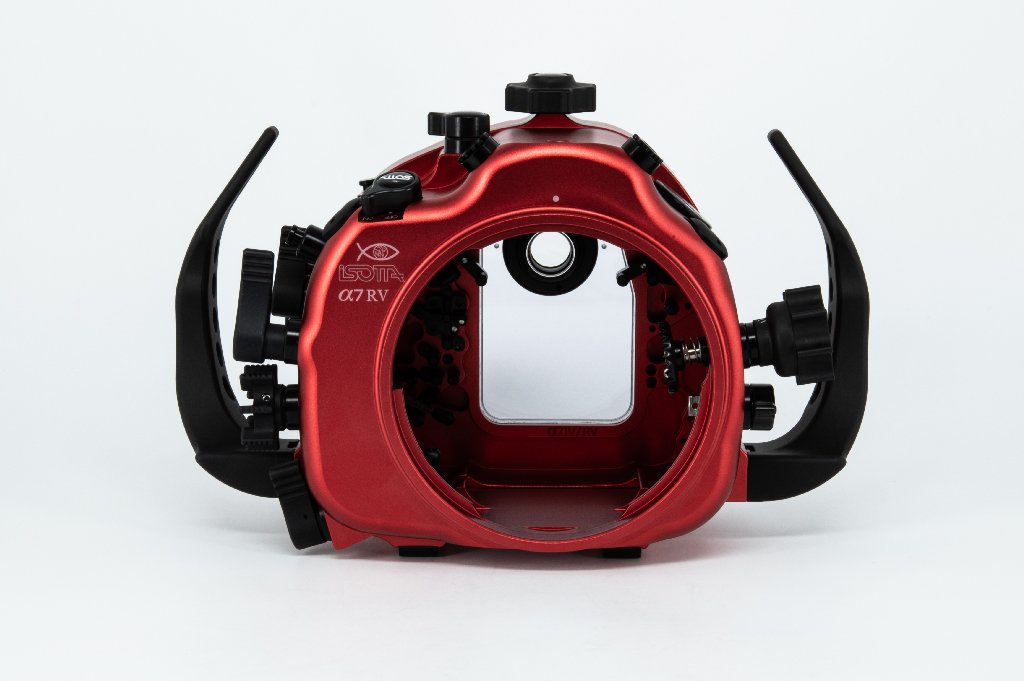

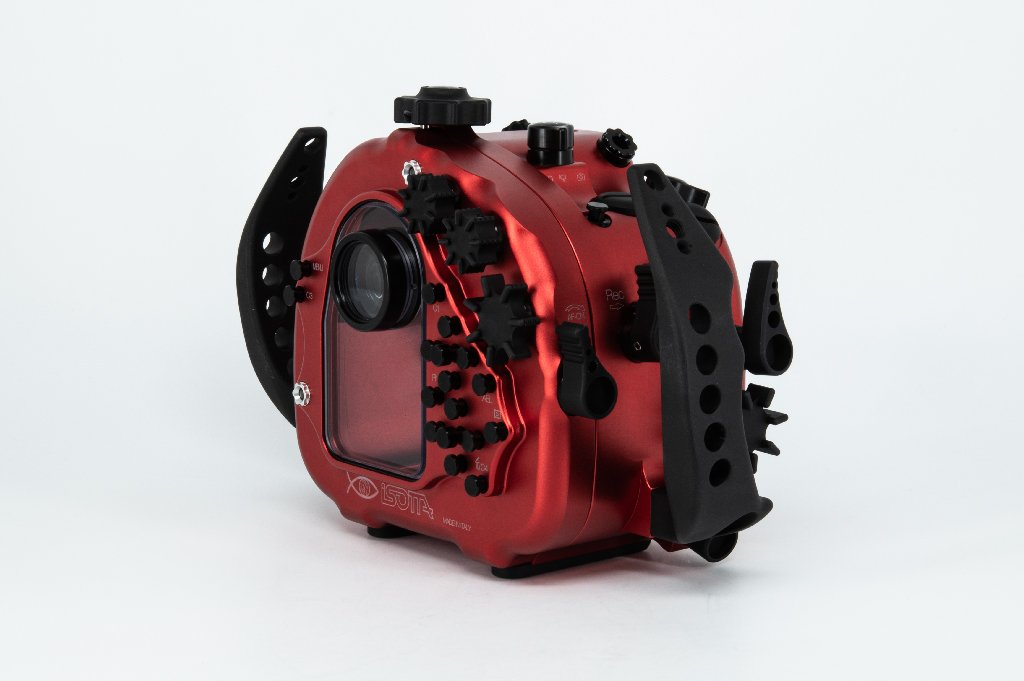

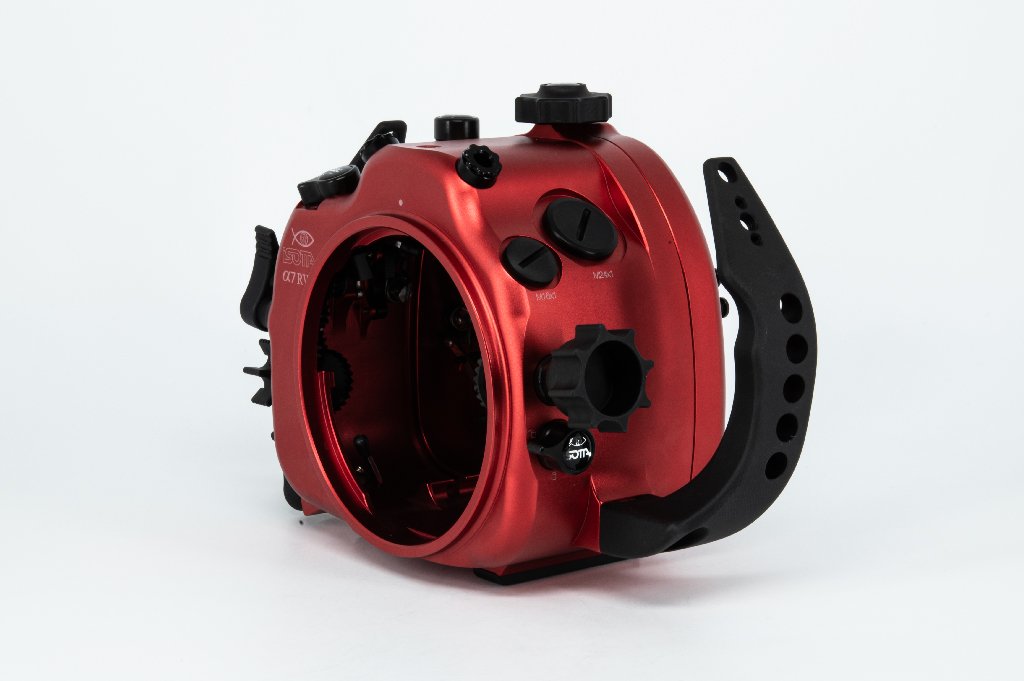

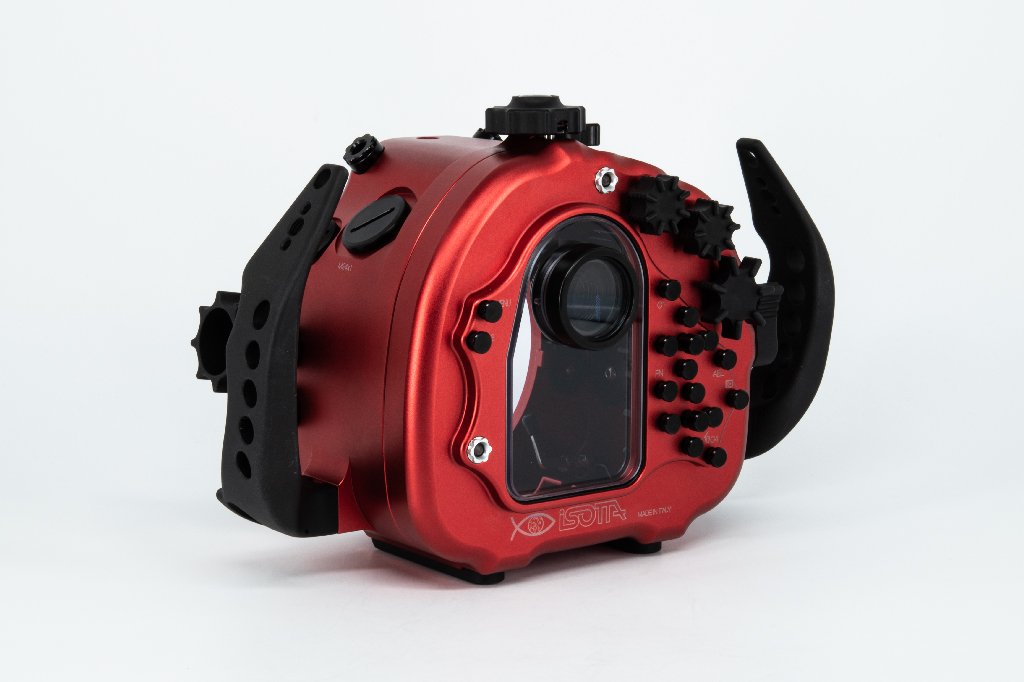

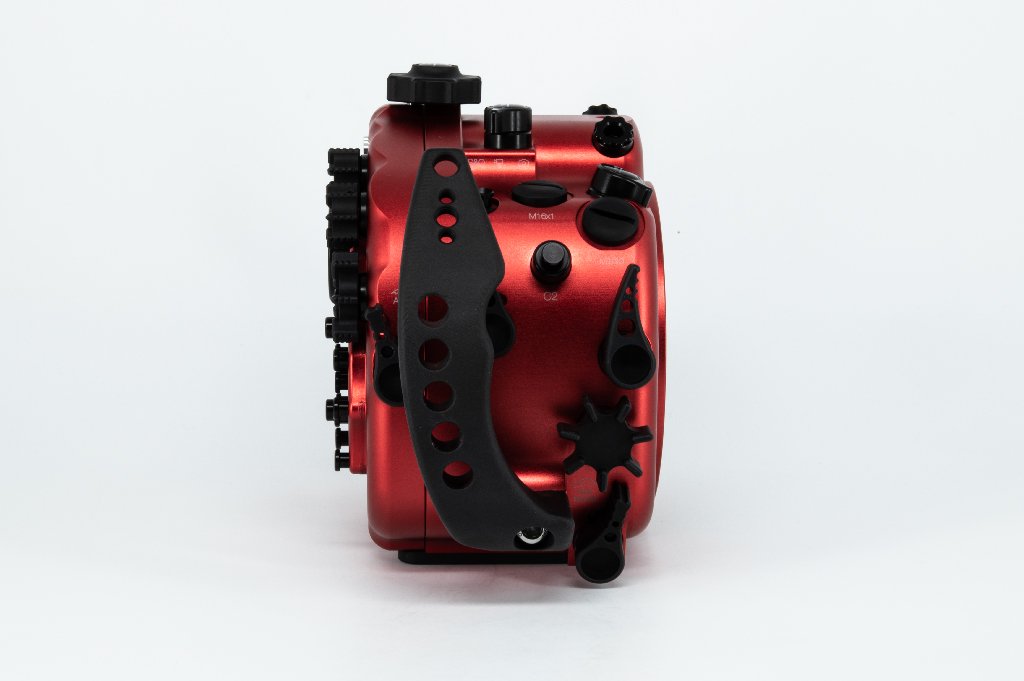

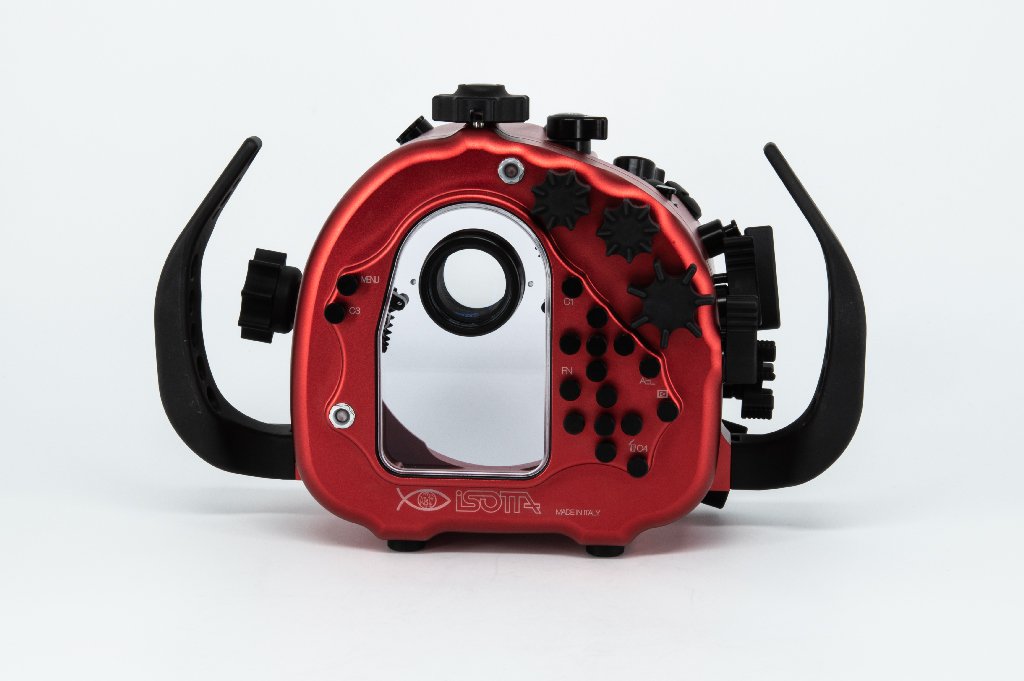

Isotta A7R V Underwater Housing for Sony Alpha 7R V

Controls

• On and off lever of the della Sony Alpha 7R V;


• Ergonomic camera focusing and shutter lever, easy to use with gloves;



• Lens release lever;



• Front dial;



• C1 button;


• C2 button;


• C3 button;


• C4/Delete button
;


• Mode dial;

• Still/Movie/S&Q lever;



• Zoom knob;



• Port safety lever;



• Movie lever (REC);



• AF-ON lever;



• Rear dial L;



• Rear dial R;


• Lock button rear dial R



• Menu button;


• AEL button;


• Multi-selector;

• Playback button;


• Control wheel buttons;


• Fn button;



What's included

• Housing;

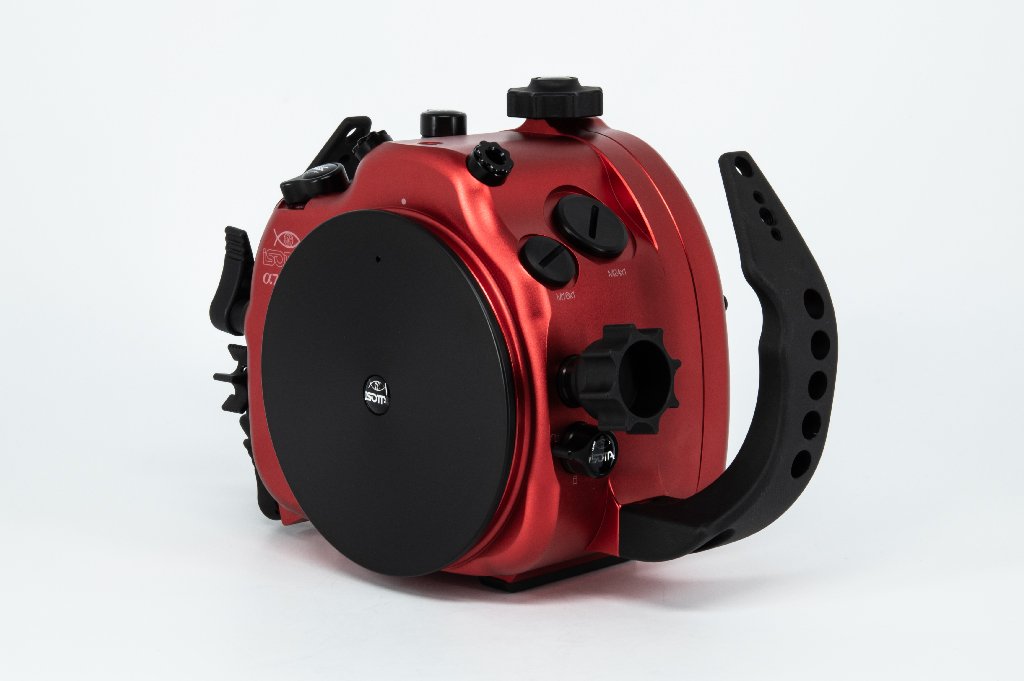

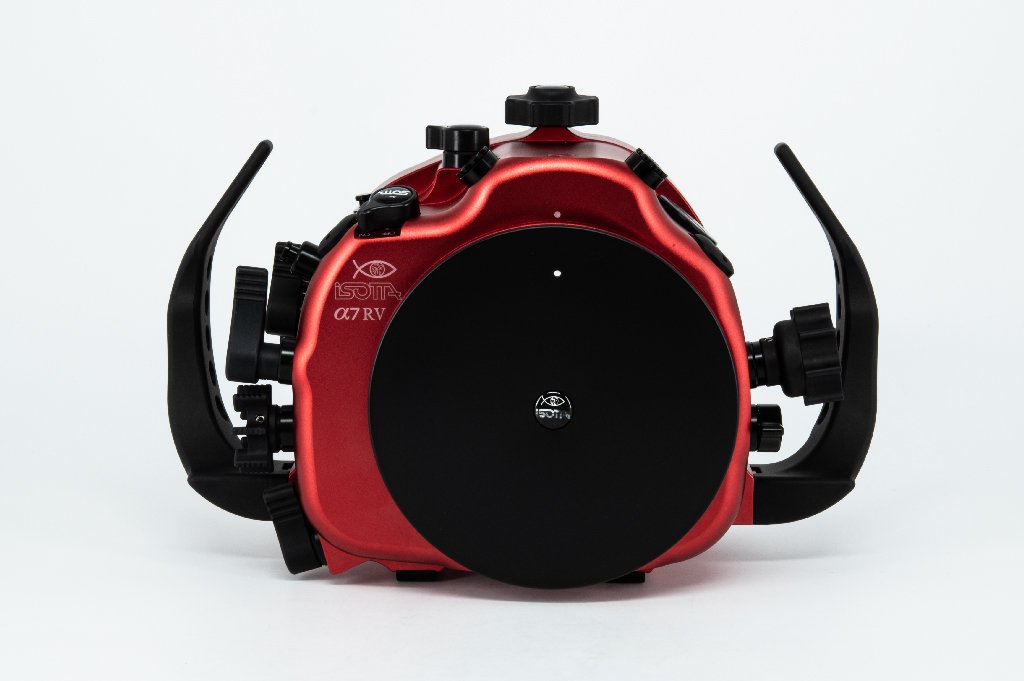

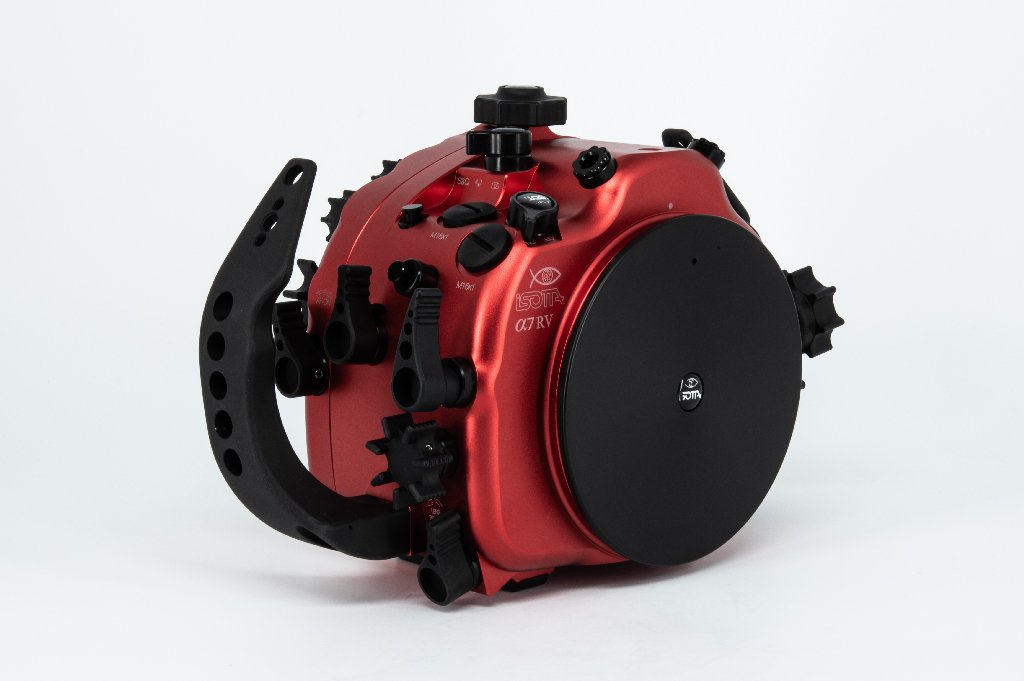

• Front lid;



• Handles;



• ISOTTA standard viewfinder;



• Moisture sensor;



• Fiber optic connections (to shoot it needs an additional trigger);



• Spare o-ring kit;



• Silicone grease 15gr/0,5 oz;



• 2 years manufacturer warranty;


Technical data

• Red color anodized aluminum body;

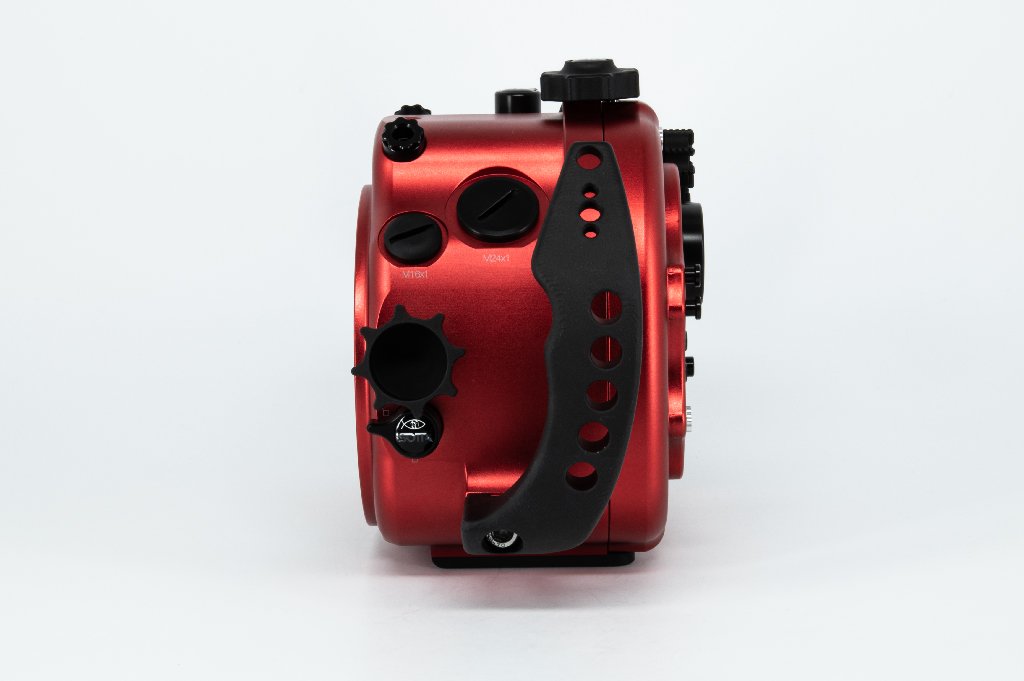

• Ergonomic side handles, adjustable (via optional accessory);



• Two fiber optic connections standard (to shoot it needs an additional trigger);

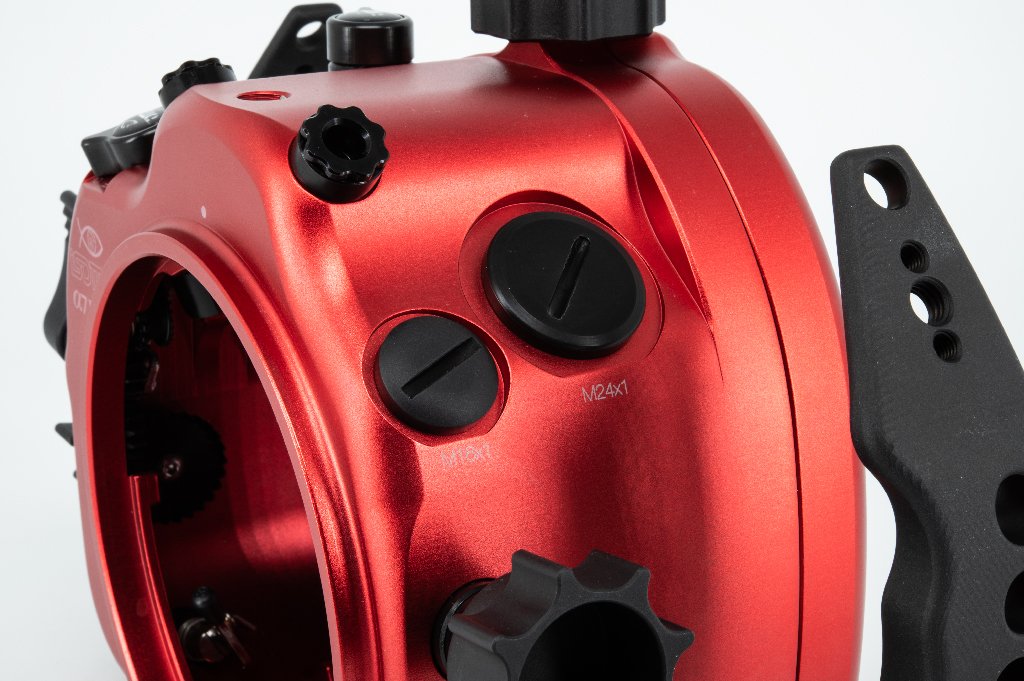

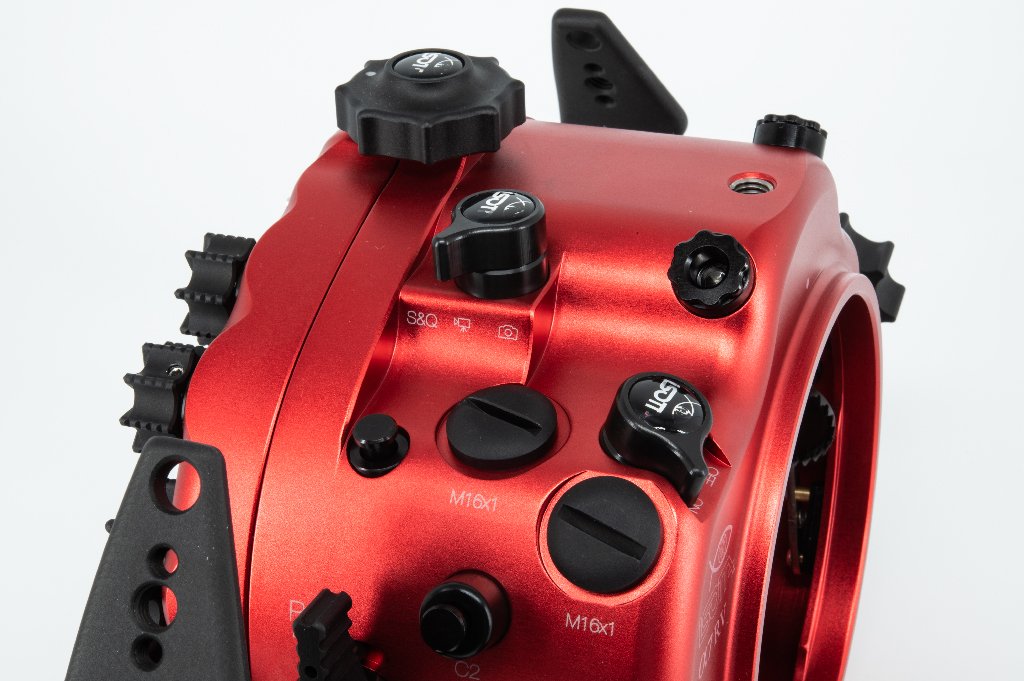

• Three M16 holes and one M24 for installation of accessories, e.g. syncro cords, vacuum valves, monitors;



• Back housing completely detachable from the front housing;



• Tray with lock for the easy insertion of the camera;



• Single-hand closing knob for the back of the housing;



• Aluminum buttons and dials with engraved symbols identical to camera controls;



• Wide back display viewfinder glass;


• Double O-Ring seals on all buttons and removable parts;



• Moisture sensor with LED indicator (replaceable battery);


• Designed for the ISOTTA Vacuum System;

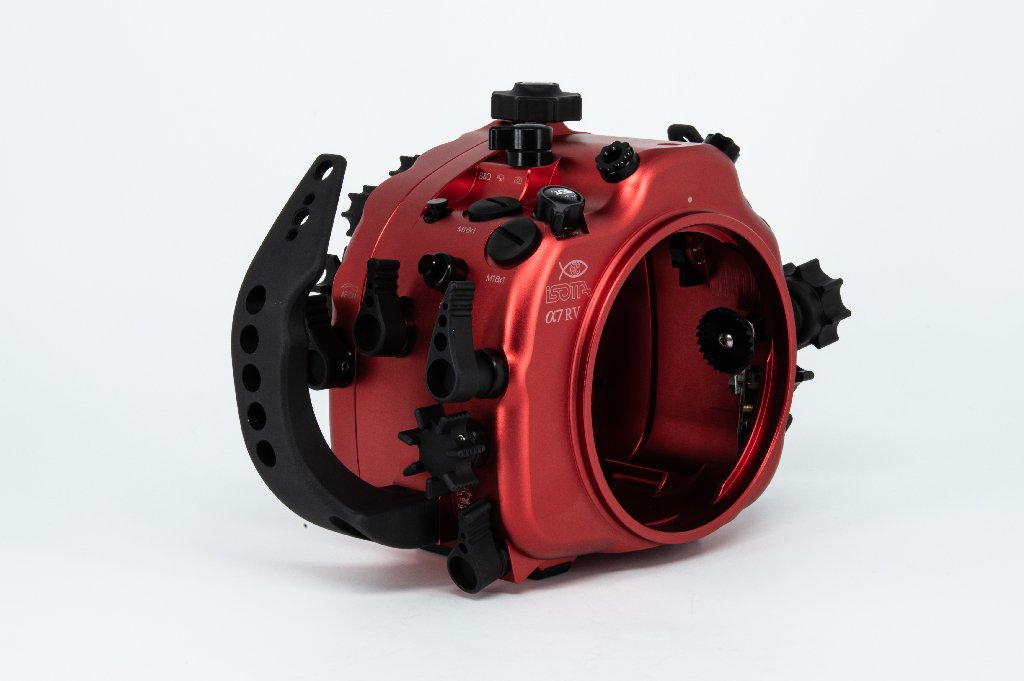

• Removable port 120 mm bayonet;



• Ports security latch to prevent accidental opening;



• Wide, rubber covered feet for solid footing on boat floors or sea floor;



• M8 hole located on upper side of the housing for various accessories such as focus lights;



• Two M6 holes located on housing bottom side for different accessories such as brackets for strobes or tripods;



• External viewfinders can be mounted, INON X-2 compatible;


• Sizes (LxHxP): 281.6x185.3x126.9;



• Depth rated to 100 metres;

Spare parts

• - Maintenance o-ring set for Sony Alpha 7R V housing;



• 1895 - Housing front lid;



Optional

• Trigger;

• Nikonos 5 bulkhead;



• S6 bulkhead;



• Handles extension;
