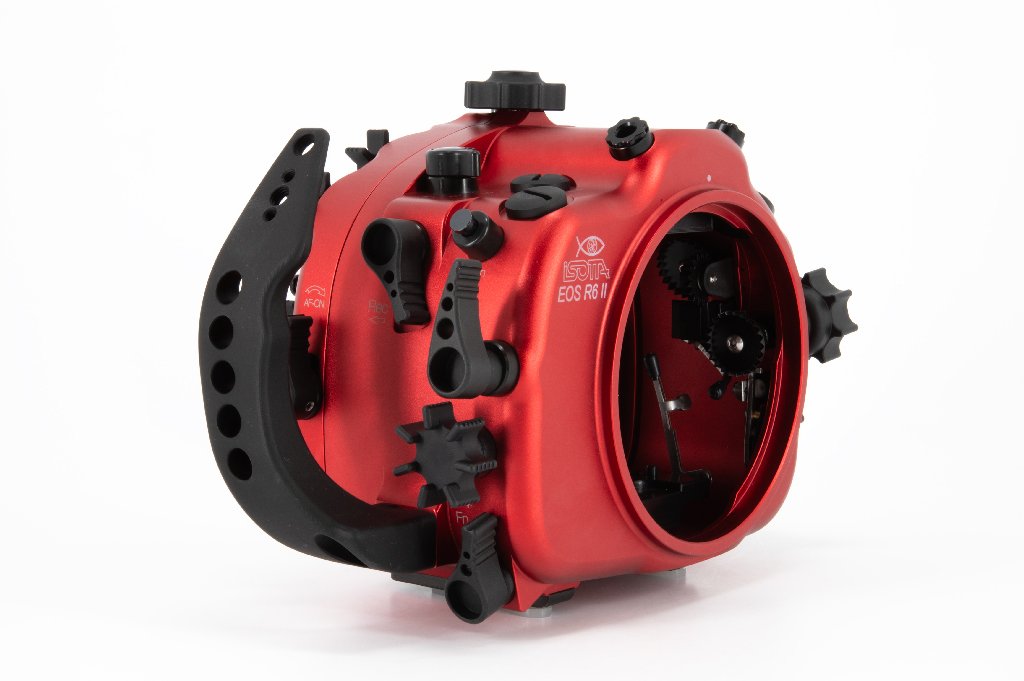

Isotta Housing for Canon EOS R6 Mark II

Controls

• ON/OFF lever of the Canon R6 Mark II;

• Ergonomic camera focusing and shutter lever, easy to use with gloves;

• Lens release lever;
• Zoom knob with RF lens;
• Zoom knob with EF lens;
• Port safety lever;
• Lens release lever;
• Multi-function button;
• Movie shooting lever;
• Depth-of-field preview button;
• Shutter button lever ;
• Main dial;
• Rating/Voice memo button (RATE);
• MENU button;
• Still photo shooting/movie recording switch;
• Mode dial;
• Quick control dial 2;
• Multicontrol buttons;
• AF point selection button;
• AE lock button;
• Quick control dial 1;
• Magnify/Reduce button;
• Quick control button;
• Playback button;
• Erase button;
• SET button;
• INFO button;

In the Box

• Housing;

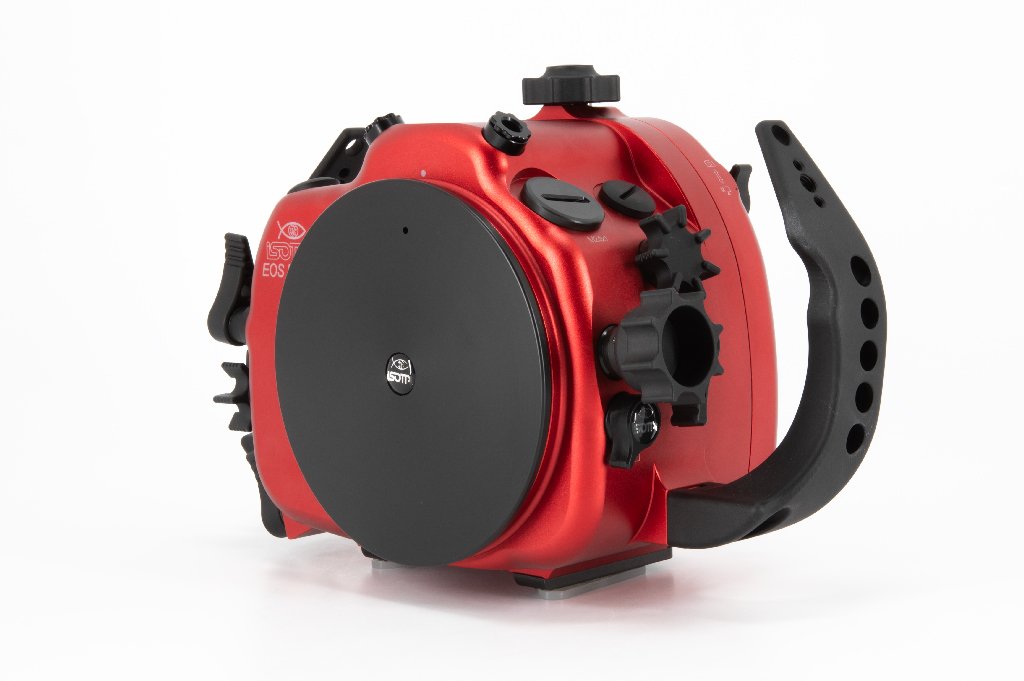

• Front lid;

• Handles;

• ISOTTA standard viewfinder;

• Moisture sensor;

• Fiber optic connections (to use the flash needs an optional trigger);
• Spare o-ring kit;

• Silicone grease 15gr / 0,5 oz;
• 2 years manufacturer warranty (excluding batteries);

Technical Data

• Red color anodized aluminum body;

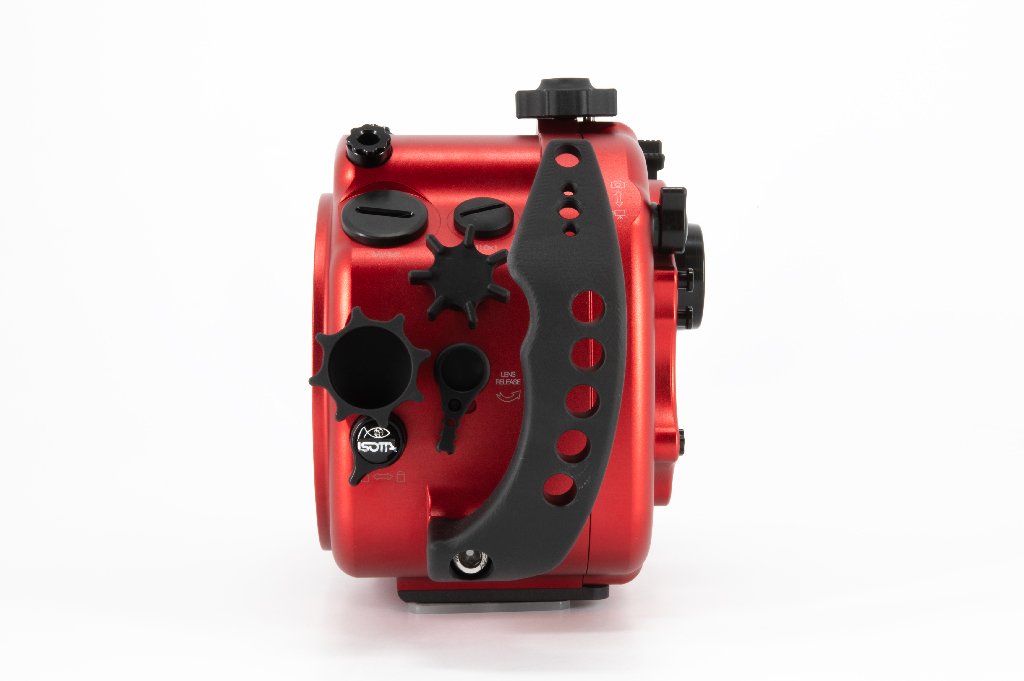

• Ergonomic side handles, adjustable (via optional accessory);

• Two fiber optic connections standard(to use the flash needs an optional trigger);
• Two M16 holes and one M24 for installation of accessories, e.g. syncro cords, vacuum valves, monitors;

• Back housing completely detachable from the front housing;

• Tray with lock for the easy insertion of the camera;

• Single-hand closing knob for the back of the housing;

• Aluminum buttons and dials with engraved symbols identical to camera controls;

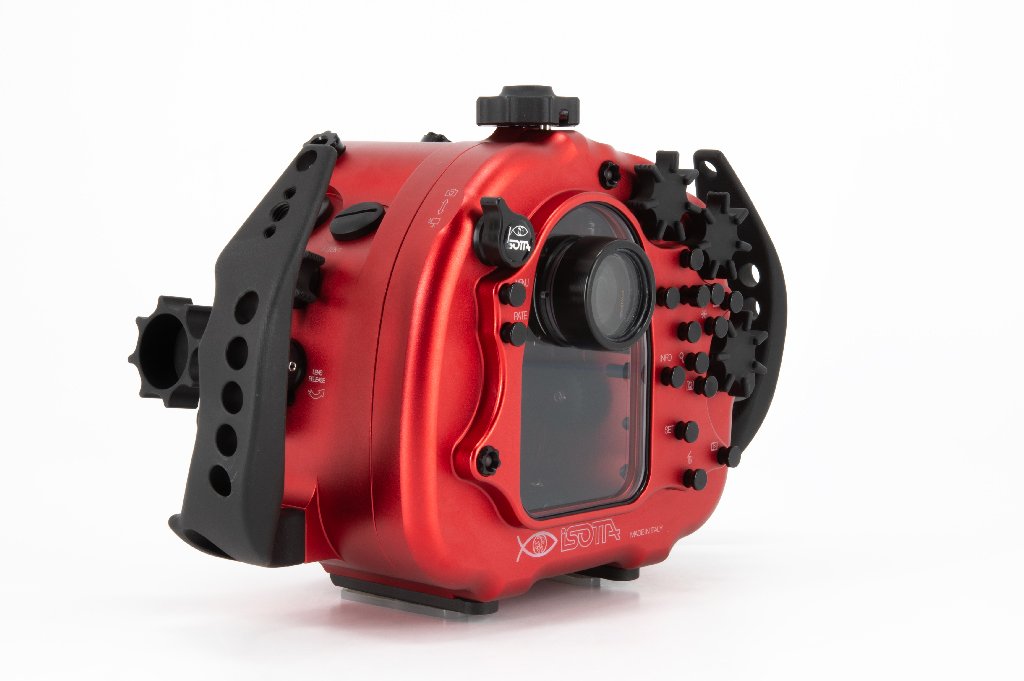

• Wide back display viewfinder glass;
• Double O-Ring seals on all buttons and removable parts;

• Moisture sensor with LED indicator (replaceable battery);

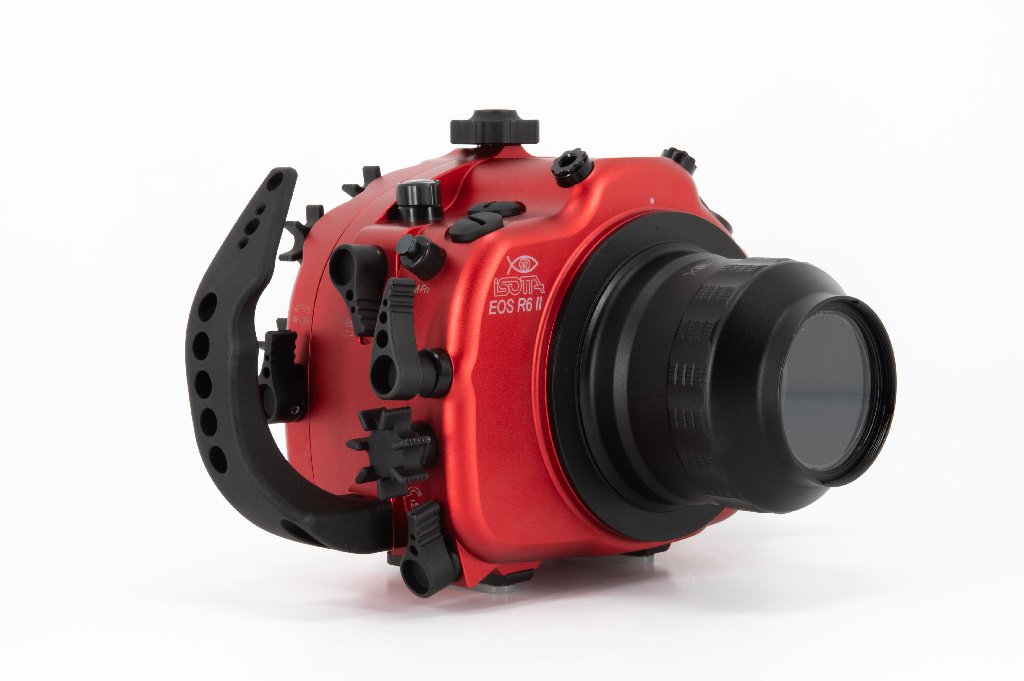

• Removable port 120 mm bayonet;

• Ports security latch to prevent accidental opening;

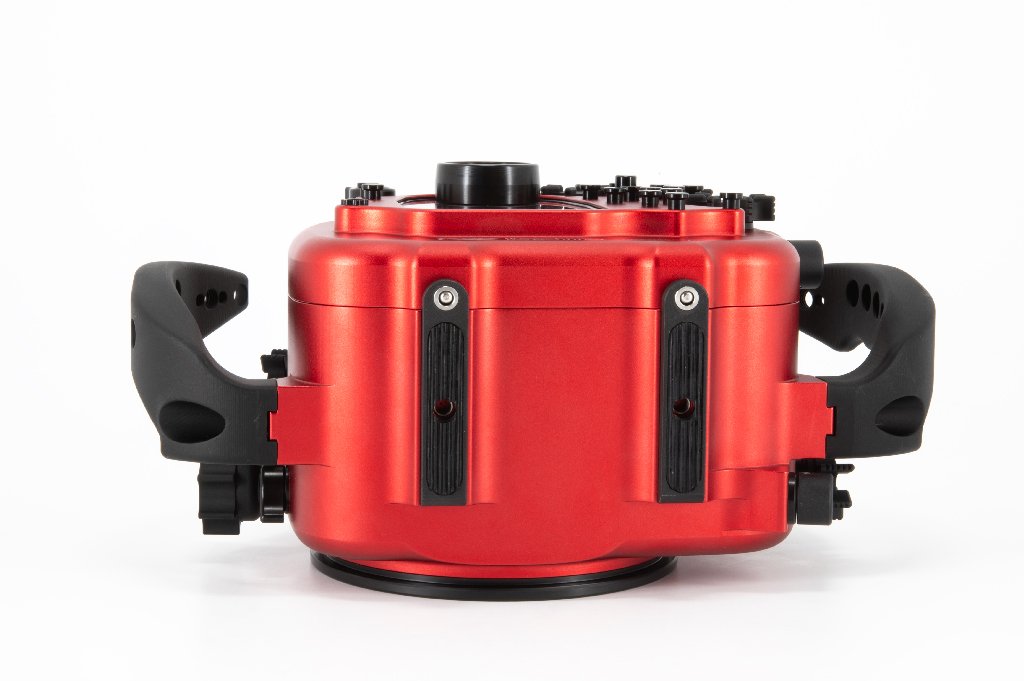

• Wide, rubber covered feet for solid footing on boat floors or sea floor;

• M8 hole located on upper side of the housing for various accessories such as focus lights;

• Two M6 holes located on housing bottom side for different accessories such as brackets for strobes or tripods;

• Prepared for ISOTTA vacuum (not included);
• External viewfinders can be mounted, INON X-2 compatible;

• Sizes (LxHxP): 291.6x185.3x137.4;

• Depth rated to 100 metres;

Spare parts

• 3714 - Maintenance o-ring set for Canon R6 Mark II housing;

• 1895 - Housing front lid;


Optional


• Manual trigger;

• Nikonos 5 bulkhead;

• S6 bulkhead;

• Vacuum System;
• Handles extension;
