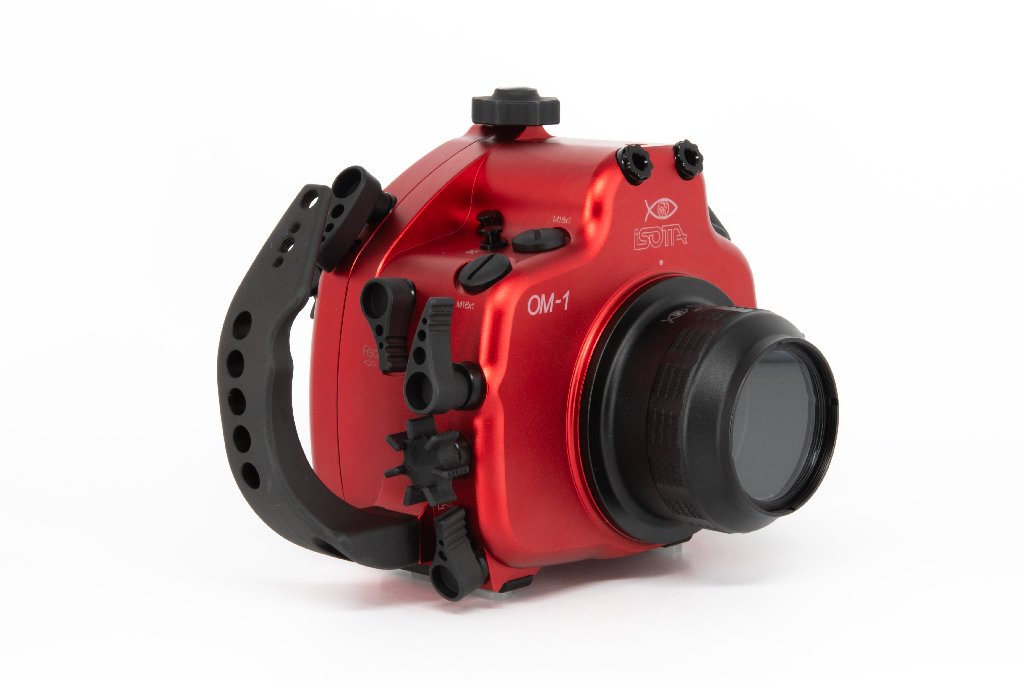

Isotta Housing for OM System OM-1 and OM-II
An ergonomic highly professional product entirely made in Italy that offers the highest quality and enhanced performance underwater. Isotta aluminium housings are build to last.
All of the purchases include an in store or remote setup workshop. Please contact us for a quote or if you need to help decide what’s the best camera and lens setup for you.
An ergonomic highly professional product entirely made in Italy that offers the highest quality and enhanced performance underwater. Isotta aluminium housings are build to last.
All of the purchases include an in store or remote setup workshop. Please contact us for a quote or if you need to help decide what’s the best camera and lens setup for you.
An ergonomic highly professional product entirely made in Italy that offers the highest quality and enhanced performance underwater. Isotta aluminium housings are build to last.
All of the purchases include an in store or remote setup workshop. Please contact us for a quote or if you need to help decide what’s the best camera and lens setup for you.
TECHNICAL DATA
Red color anodized aluminum body;
Ergonomic side handles;
Two fiber optic connections standard (to use the flash needs an optional trigger);
Three M16 holes for using accessories such as vacuum systems, monitors, Nikonos or S6 bulkhead;
Back housing completely detachable from the front housing;
Tray with lock for the easy insertion of the camera;
Single-hand closing knob for the back of the housing;
Aluminum buttons and dials with engraved symbols identical to camera controls;
Wide back display viewfinder glass;
Standard ISOTTA viewfinder;
Double O-Ring seals on all buttons and removable parts;
Moisture sensor with LED indicator (replaceable battery);
Removable port B102 bayonet;
Safety lock on the porthole to prevent accidental opening;
Wide, rubber covered feet for solid footing on boat floors or sea floor;
M8 hole located on upper side of the housing for various accessories such as focus lights;
Two M6 holes located on housing bottom side for different accessories such as brackets for strobes or tripods;
Prepared for ISOTTA vacuum system (not included);
External viewfinders can be mounted, INON X-2 compatible;
Working depth: 100 meters;
Weight: 2,500 gr;
Sizes (LxHxP): 180mm x 110mm x 190mm;
COMMANDS
ON/OFF lever of the OM System OM-1 and OM-1 Mark II;
Ergonomic camera focusing and shutter lever, easy to use with gloves;
Lens release button;
Zoom dial;
Front dial;
Mode dial;
Mode dial lock button;
Port safety lever;
Movie (REC) lever;
One-touch white balance button;
Rear dial;
INFO button;
Playback button;
Menu button;
Live View button;
OK button;
Arrow pad buttons;
Erase button;
Fn lever;
AEL button;
ISO button;
Exposure compensation button;
AF-ON lever;
Multi selector button;
AF/metering mode button;
Sequential shooting/self-timer/flash button;
OPTIONAL
Manual trigger (using the trigger you can't use the flash);
Nikonos 5 bulkhead;
S6 bulkhead;
Vacuum system ISOTTA;
Handle extension;
WHAT IS INCLUDED
Housing;
Front lid;
Standard ISOTTA viewfinder;
Humidity sensor;
Fiber optic connection bulkhead (to use the flash needs an optional trigger);
Replacement O-ring kit;
Silicone lubricant 15gr / 0,5 oz;
Warranty: 2 years manufacturer's (excluding batteries);
