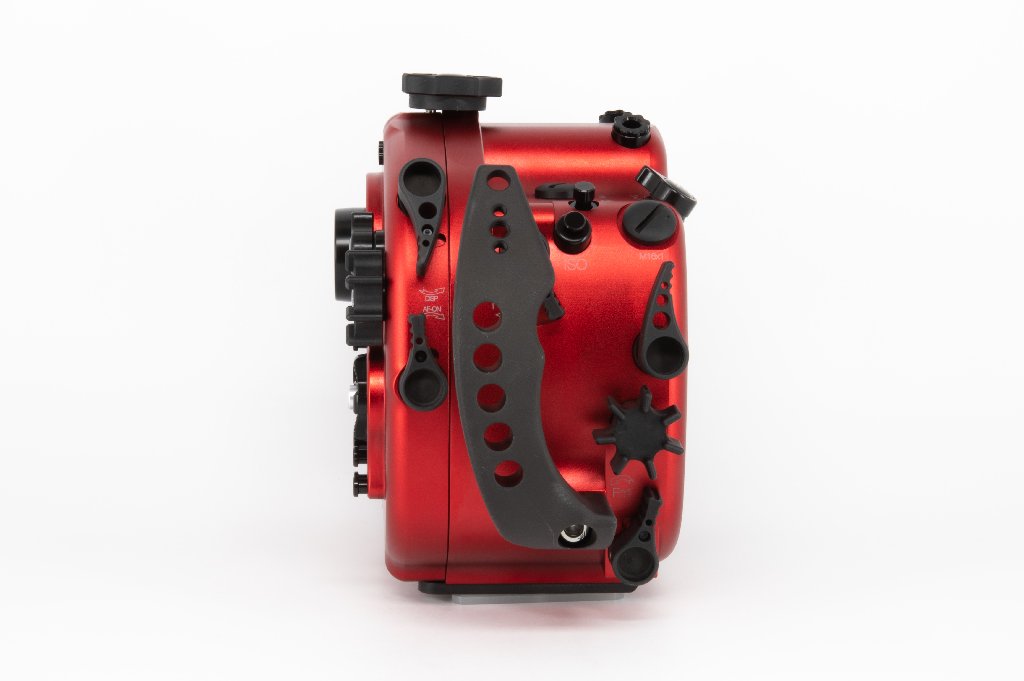

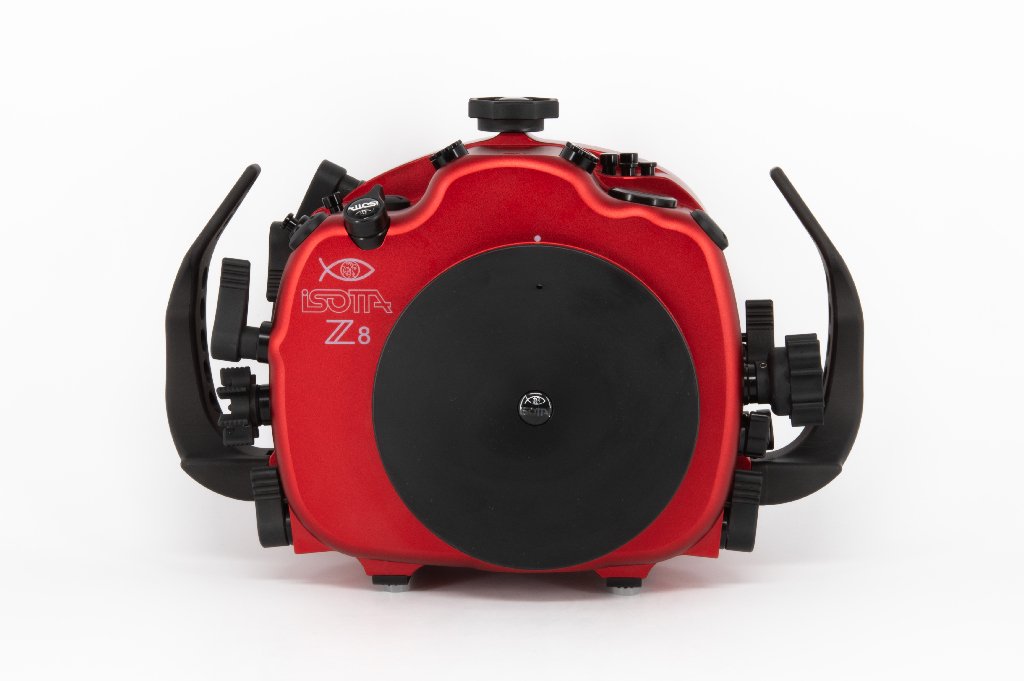

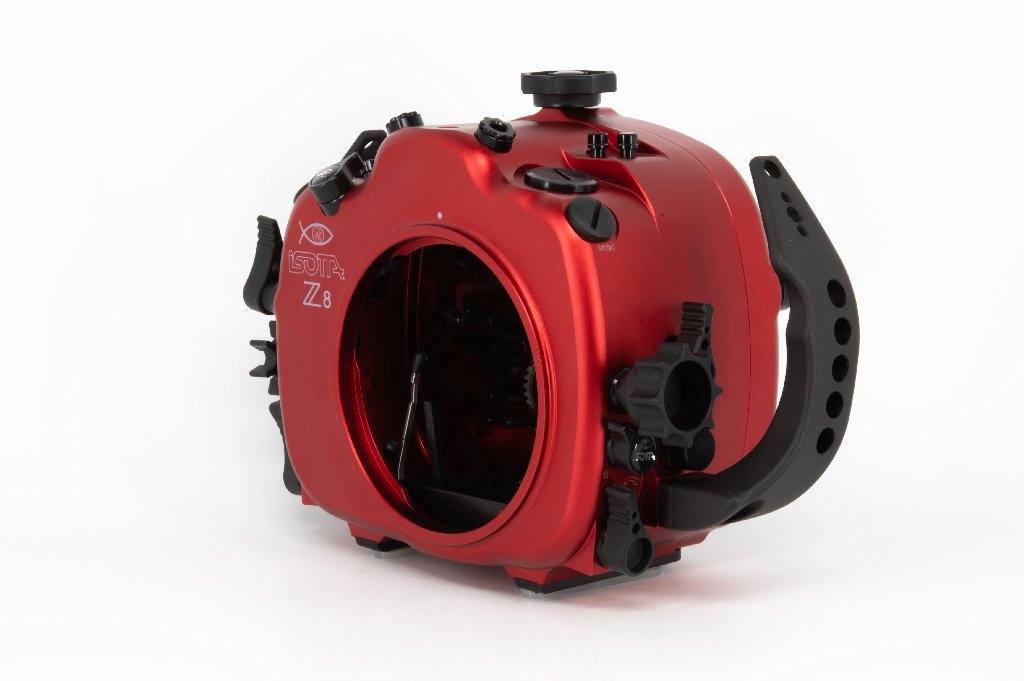

Isotta Nikon Z 8 Underwater Housing for Nikon Z8

Controls

•On and off lever of the Nikon Z8;

• Ergonomic camera focusing and shutter lever, easy to use with gloves;

• Lens release lever;

• Front dial;

• Fn1 lever;

• Fn2 lever;

• Fn3/Key button;

• ISO button;

• MODE button;

• BKT button;

• WB button;

• +/- button;

• Focus mode button;

• Release mode button;

• Zoom knob;

• Port safety lever;
• Movie lever (REC);

• AF-ON lever;

• Rear dial R;
• i (info) button;

• Menu button;

• AEL button;

• DISP. button;

• Multi-selector;

• Playback, Viewing pictures button;

• Zoom-in (+) button;

• Zoom-out (-) button;

• Qual button;

• Delete button;

• Photo/video selector;

• On/Off Display lever;

What's included

• Housing;
• Front lid;

• Handles;

• ISOTTA standard viewfinder;

• Moisture sensor;

• Fiber optic connections (to shoot it needs an additional trigger);

• Spare o-ring kit;

• Silicone grease 15gr/0,5 oz;

• 2 years manufacturer warranty;

Technical data

• Red color anodized aluminum body;

• Ergonomic side handles, adjustable (via optional accessory);

• Two fiber optic connections standard (to shoot it needs an additional trigger);

• Three M16 holes and one M24 for installation of accessories, e.g. syncro cords, vacuum valves, monitors;

• Back housing completely detachable from the front housing;

• Tray with lock for the easy insertion of the camera;

• Single-hand closing knob for the back of the housing;

• Aluminum buttons and dials with engraved symbols identical to camera controls;

• Wide back display viewfinder glass;

• Double O-Ring seals on all buttons and removable parts;

• Moisture sensor with LED indicator (replaceable battery);

• Removable port 120 mm bayonet;

• Ports security latch to prevent accidental opening;

• Wide, rubber covered feet for solid footing on boat floors or sea floor;

• M8 hole located on upper side of the housing for various accessories such as focus lights;

• Two M6 holes located on housing bottom side for different accessories such as brackets for strobes or tripods;

• External viewfinders can be mounted, INON X-2 compatible;

• Sizes (LxHxP): 310x205x140;

• Depth rated to 100 metres;

Spare parts


• 4161 - Maintenance o-ring set for Nikon Z8 housing;

• 1895 - Housing front lid;

Optional


• Trigger;

• Nikonos 5 bulkhead;

• S6 bulkhead;

• Handles extension;

• M24 to M16 reducer;
