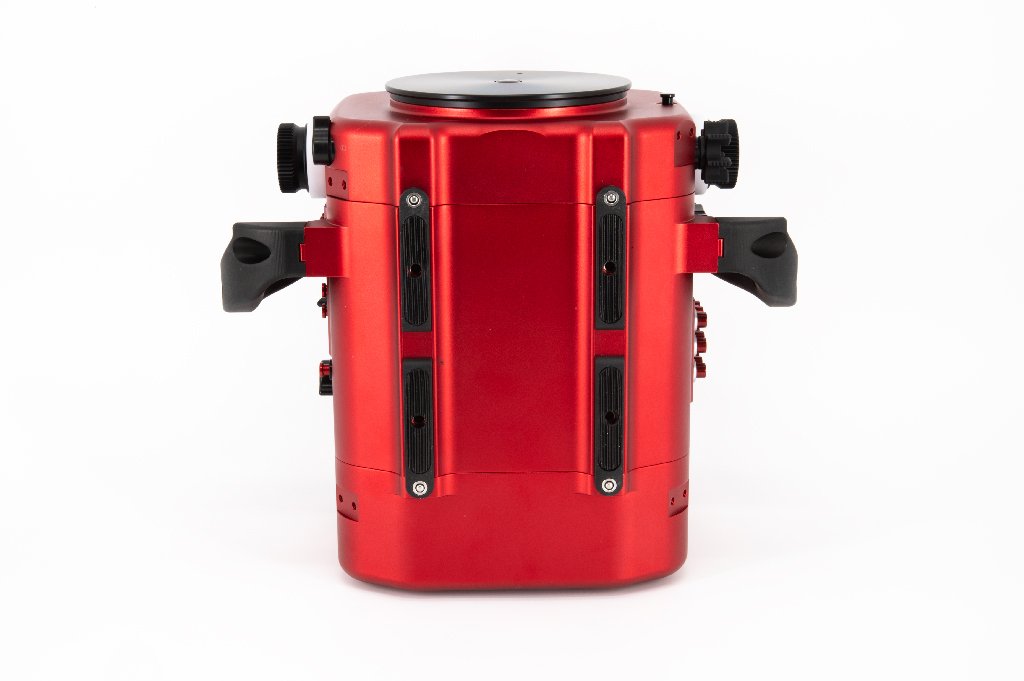

Isotta Red V-Raptor Housing- MADE TO ORDER
TECHNICAL DATA

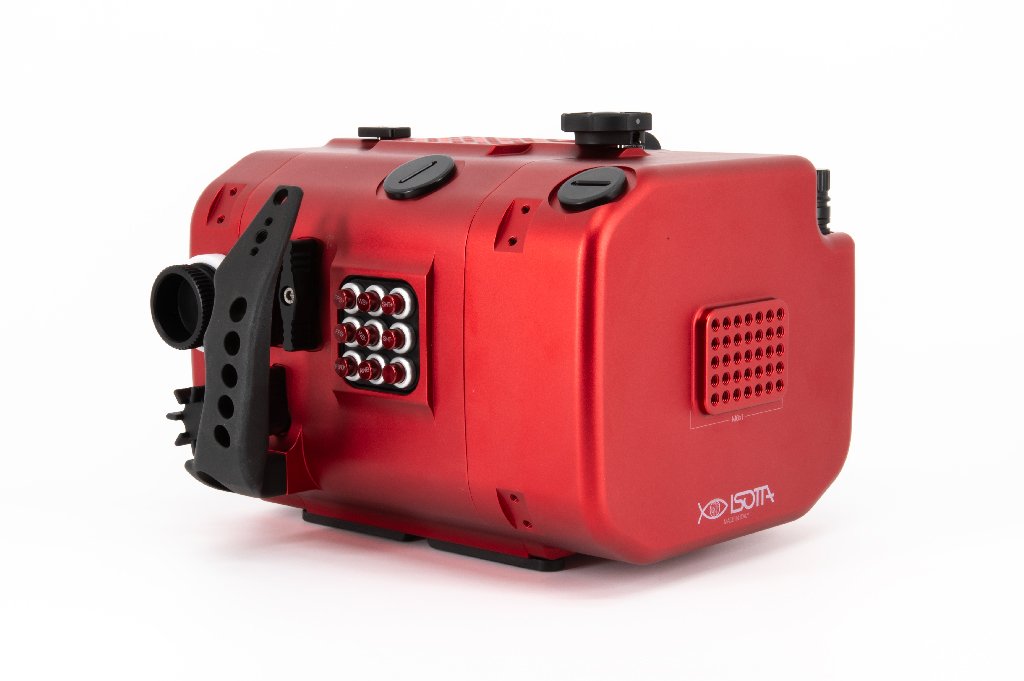

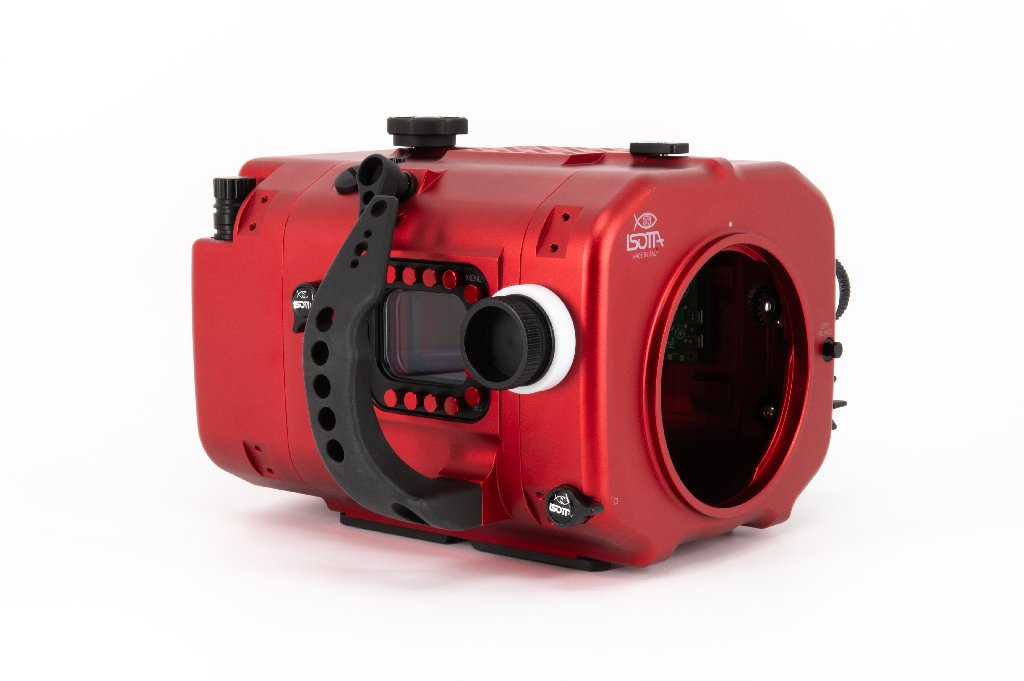

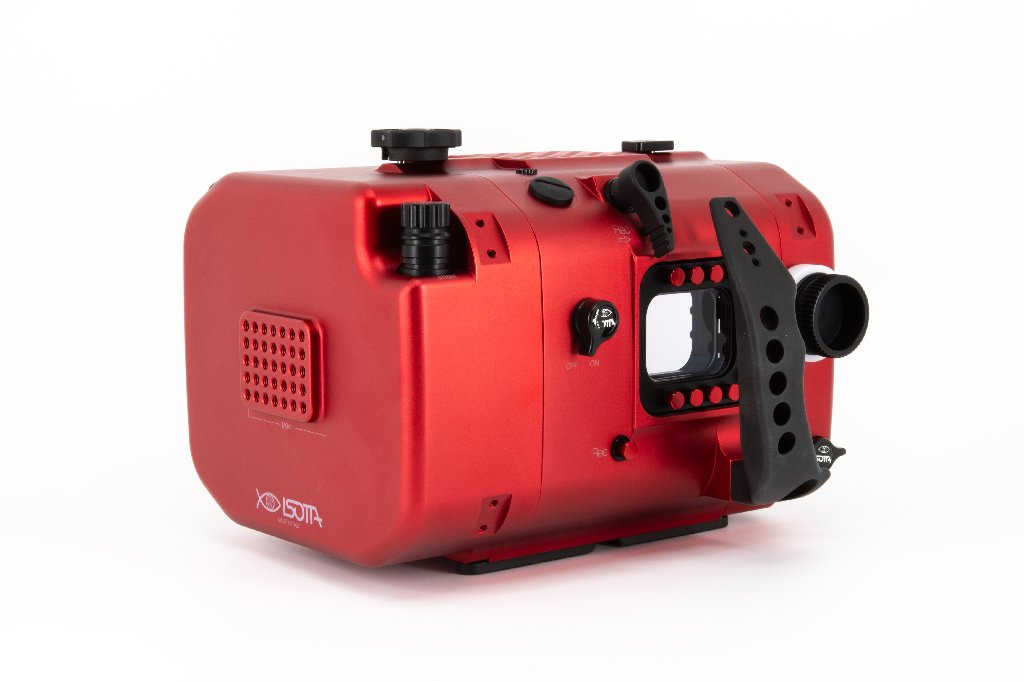

Red color anodized aluminum body;

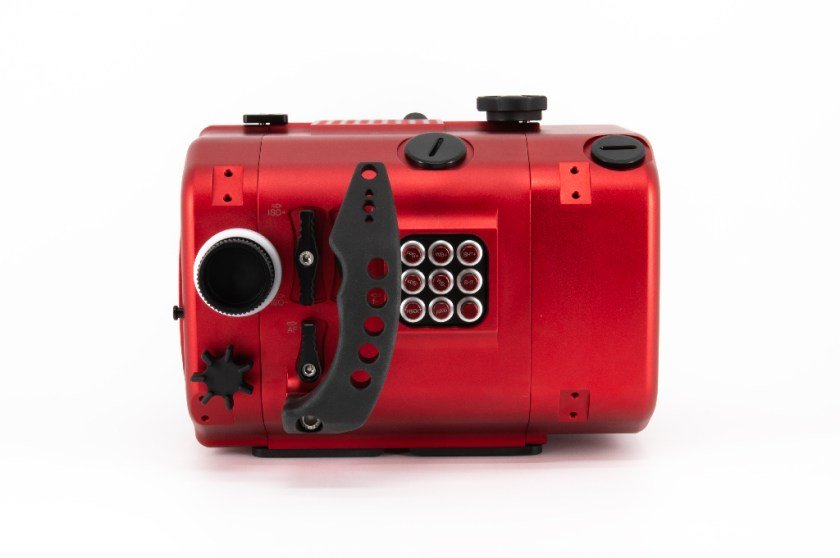

Ergonomic side handles, adjustable (via optional accessory);
Three M16 holes, one M24 hole and one M24 hole for using accessories such as vacuum systems, monitors;
Back housing completely detachable from the front housing;
Tray with lock for the easy insertion of the camera;
Single-hand closing knob for the back of the housing;
Aluminum buttons at the buttons with window for viewing the menu display;

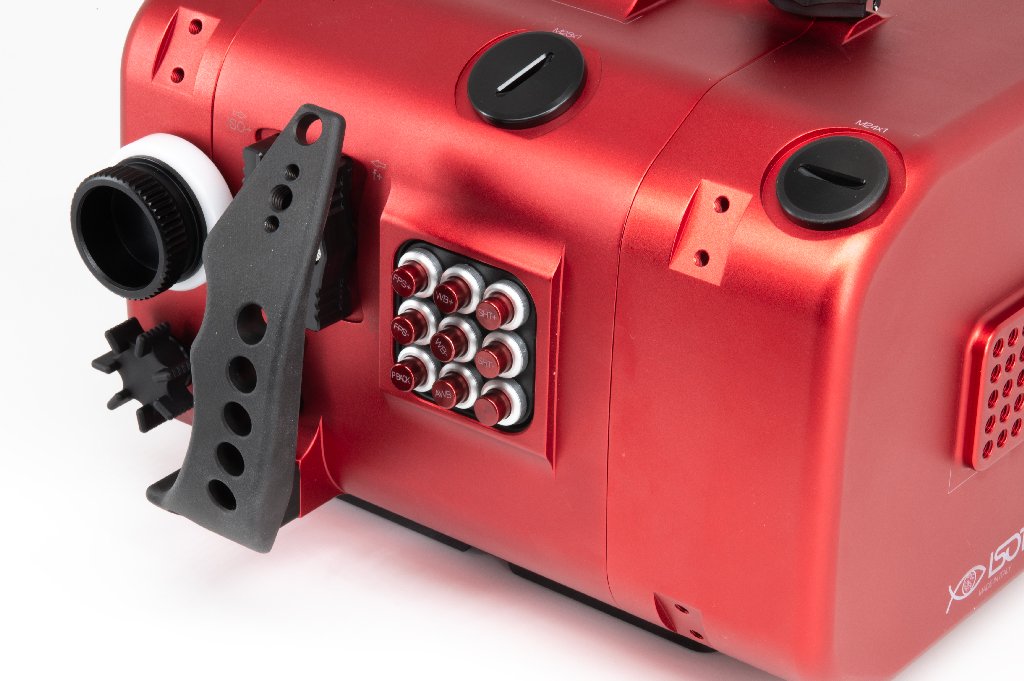

Magnetic buttons and levers in aluminum for electronic control of the V-Raptor [X];
Double O-Ring seals on all buttons and removable parts;
Moisture sensor with LED indicator (replaceable battery);

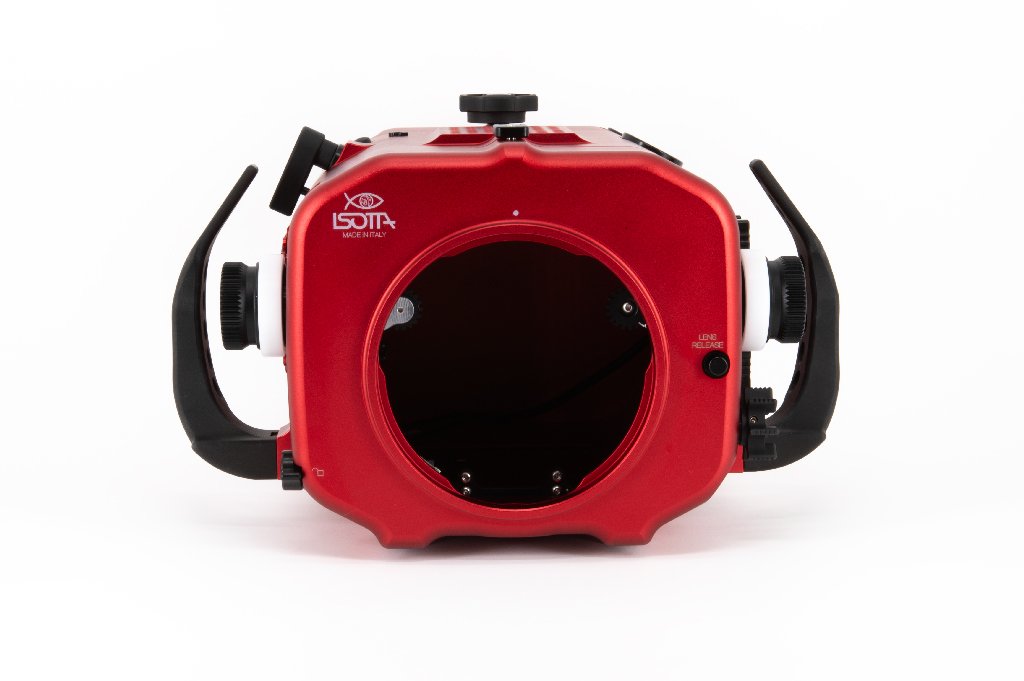

Removable port B120 bayonet;
Safety lock on the porthole to prevent accidental opening;
Wide, rubber covered feet for solid footing on boat floors or sea floor;

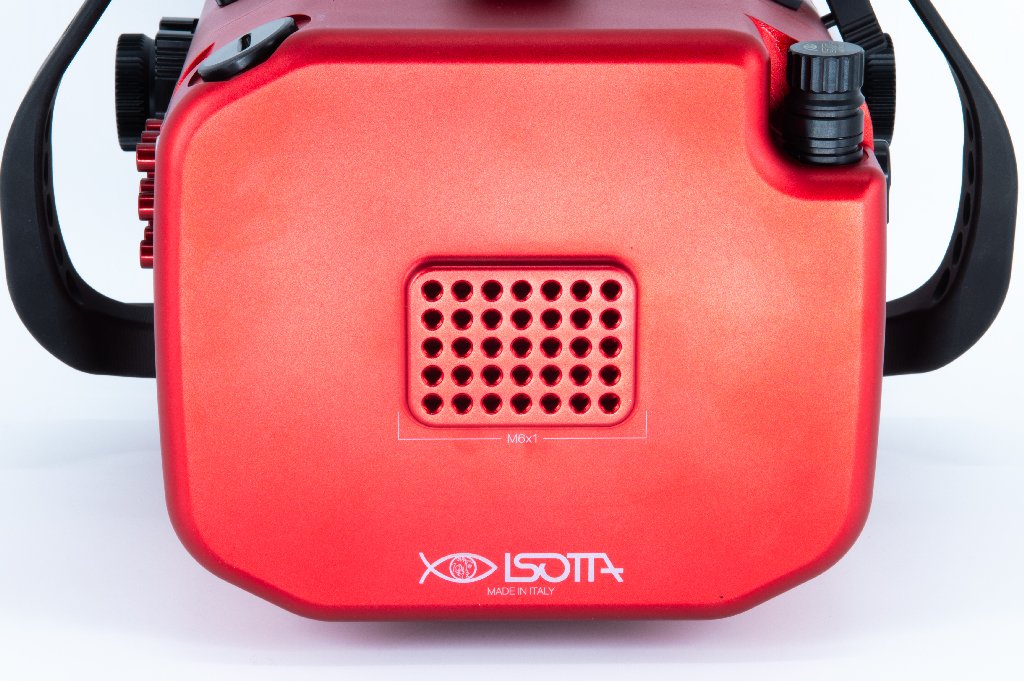

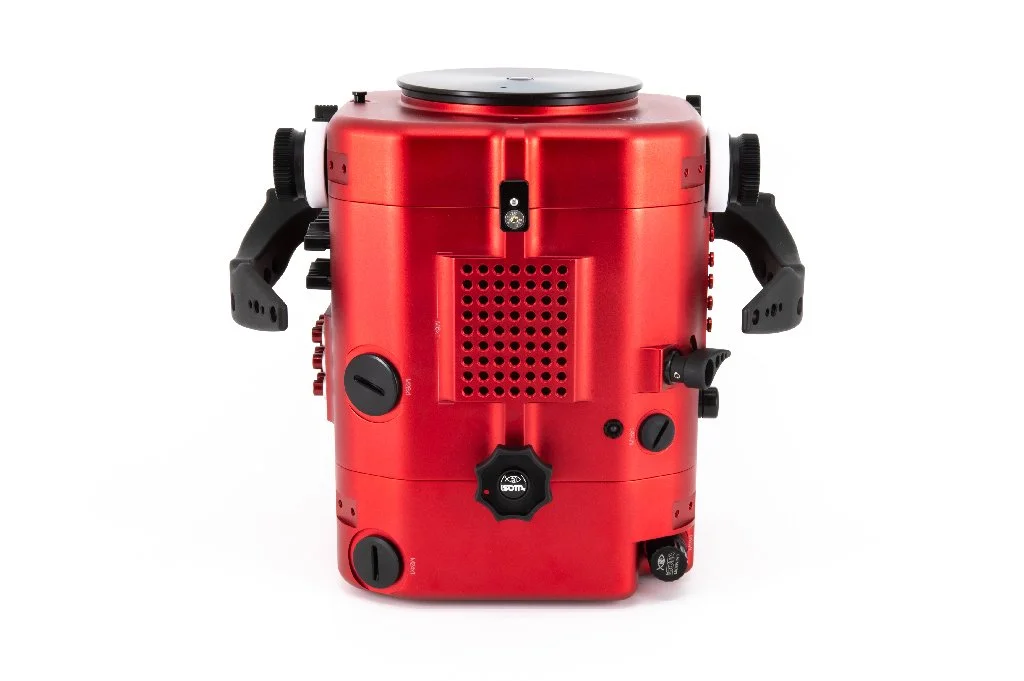

Upper and rear M6 hole grid to apply various accessories (spotlight, spheres, handle, etc.);
Four M6 holes located on housing bottom side for different accessories such as brackets or tripods
Four pairs of M5 holes per side for attaching balls with plate;
Prepared for ISOTTA vacuum system (not included);
Working depth: 100 meters;
OPTIONAL
Ninja V+ monitor housing;
M28x1 bulkhead;
Connection cable;
XL adjustable balance tray;
Vacuum system;
Handles extension;
WHAT IS INCLUDED
Housing;
Front lid;
Handles;
Humidity sensor;
Replacement O-ring kit;
Silicone lubricant 15gr / 0,5 oz;
Warranty: 2 years manufacturer's (excluding batteries);
COMMANDS

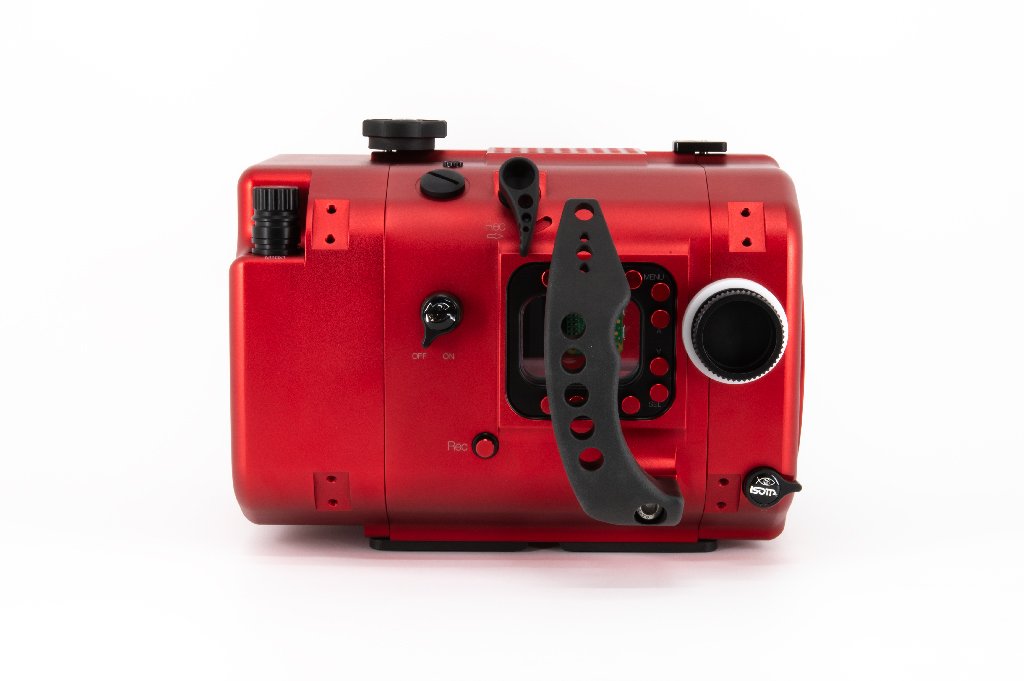

ON/OFF lever of the RED V-Raptor [X];
Ergonomic mechanical lever for movie shooting button, easy to use even with gloves;
Movie shooting button (REC);
Lens release button;
Filter dial;
Zoom knob;
Focus knob;
Port safety lever;
Menu navigation buttons;
AutoFocus lever;
ISO+/ISO- lever;
Diaphragm +/Diaphragm- lever;
FPS+ button;
FPS- button;
White Balance + button;
White Balance - button;
Shutter + button;
Shutter - button;
Playback button;
Auto White Balance button;
