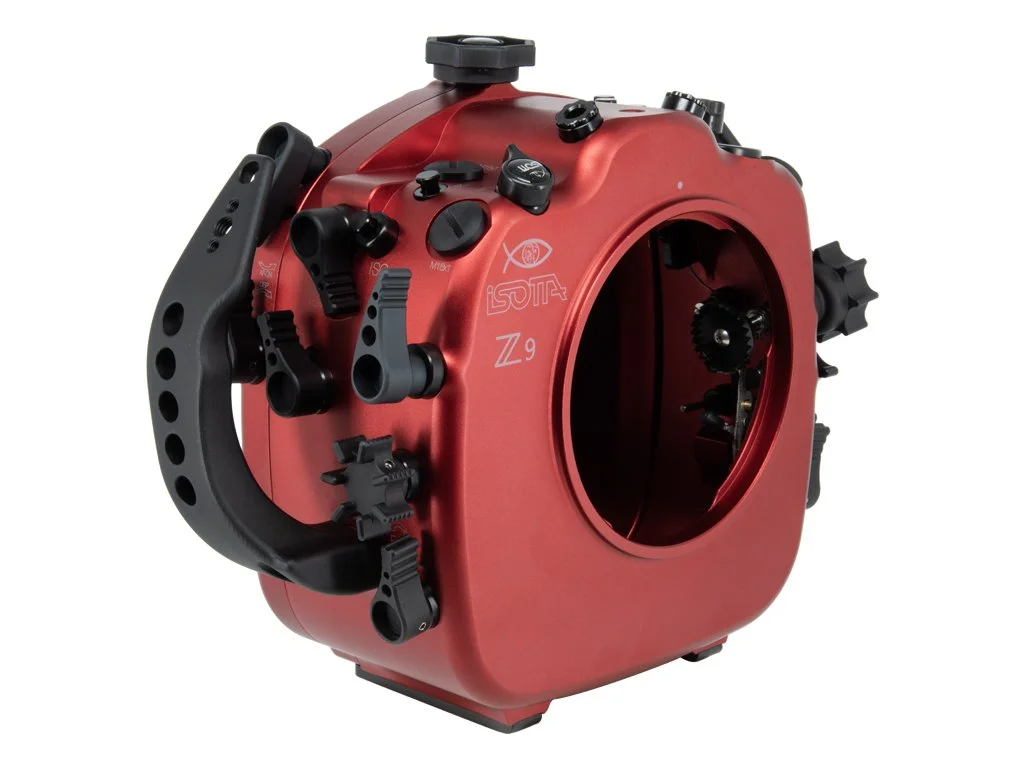

Isotta Z9 Underwater Housing for Nikon Z9 Camera

Product Details

The durable anodized aluminum protects the camera from water and other damaging elements and its stylish, compact and ergonomic design has been specifically created for the breakthrough models of mirrorless Nikon Z9. The perfect handling of the Isotta signature-red color Nikon Z9 housing is possible by means of adjustable handles crafted to match the human hand and make holding the camera very comfortable even throughout long dives. Easy access to all key/main camera controls by means of clearly labelled laser-engraved longlasting buttons, even with gloves and drysuit gloves. An quick release camera mounting plate allows the camera positioning and a lever locks the tray inside the housing. The back door has a large window anti-scratch glass for a fine camera display and optical viewfinder view and it is entirely detached from the front body to make easier the camera fitting. External viewfinders can be mounted, INON X-2 compatible.

TECHNICAL DATA Z 9 HOUSING

COMMANDS
• On and off lever of the Nikon Z9;

• Ergonomic camera focusing and shutter lever, easy to use with gloves;

• Lens release lever;

• Front dial;

• Fn1 lever;

• Fn2 lever;

• Fn3 lever;

• ISO button;

• MODE button;

• BKT button;

• Flash button

• +/- button;

• Focus mode button;

• Quick release-mode button;

• Zoom knob;

• Port safety lever;

• Movie lever (REC);

• AF-ON lever;

• Rear dial R;

• Release mode knob;

• I (info) button;

• Menu button;

• AEL button;

• DISP. button;

• Multi-selector;

• Playback, Viewing pictures button;

• Zoom-in (+) button;

• Zoom-out (-) button;

• Qual button;

• WB button;

• Delete button;

• Fn4 button;

• Photo/video selector;

• On/Off Display lever;

WHAT’S INCLUDED
• Housing;
• Front lid;
• Handles;
• ISOTTA standard viewfinder;
• Moisture sensor;
• Fiber optic connections (to shoot it needs an additional trigger);
• Spare o-ring kit;
• Silicone grease 15gr / 0,5 oz;
• 2 years manufacturer warranty;

TECHNICAL DATA
• Red color anodized aluminum body;
• Ergonomic side handles, adjustable (via optional accessory);
• Two fiber optic connections standard (to shoot it needs an additional trigger);

• Three M16 holes and one M28 for installation of accessories, e.g. syncro cords, vacuum valves, monitors;
• Back housing completely detachable from the front housing;
• Tray with lock for the easy insertion of the camera;
• Single-hand closing knob for the back of the housing;
• Aluminum buttons and dials with engraved symbols identical to camera controls;
• Wide back display viewfinder glass;
• Double O-Ring seals on all buttons and removable parts;
• Moisture sensor with LED indicator (replaceable battery);
• Removable port 120 mm bayonet;
• Ports security latch to prevent accidental opening;
• Wide, rubber covered feet for solid footing on boat floors or sea floor;
• M8 hole located on upper side of the housing for various accessories such as focus lights;
• Two M6 holes located on housing bottom side for different accessories such as brackets for strobes or tripods;
• External viewfinders can be mounted, INON X-2 compatible;

• Sizes (LxHxP): 305mmx235mmx140mm;

• Depth rated to 100 metres;

SPARE PARTS

• 3931 - Maintenance o-ring set for Nikon Z 9 housing;
• 1895 - Housing front lid;

OPTIONAL

• Trigger;
• Nikonos 5 bulkhead;
• S6 bulkhead;
• Handles extension;

• M28 to M16 reducer;

• M28 to M24 reducer;
