Marelux MX-R5 Housing for Canon EOS R5 Mirrorless Digital Camera

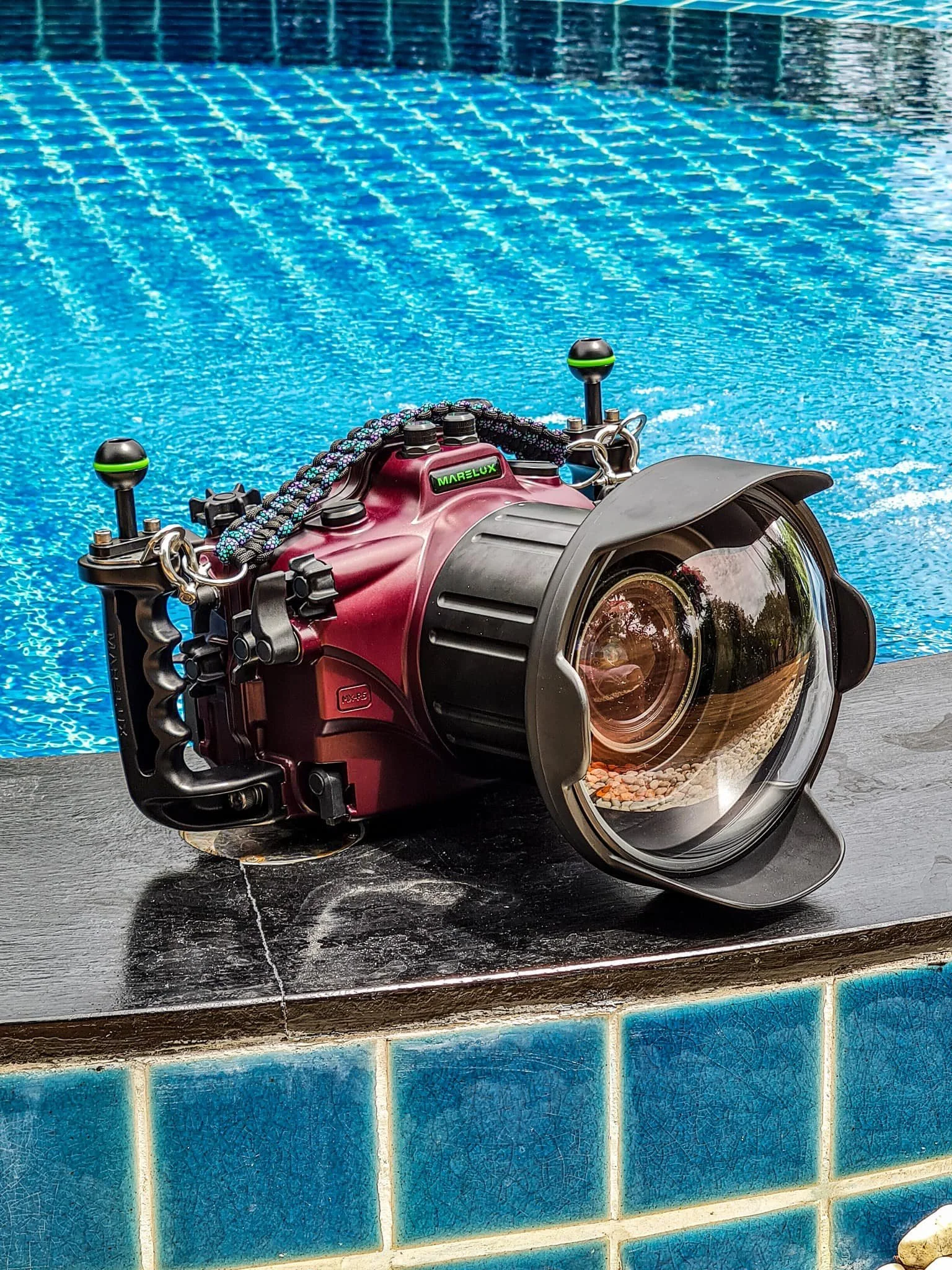

Marelux Canon EOS R5 MX-R5 Underwater Housing

Marelux housing has the industry leading design that’s not only more compact than other brands but also more simplified in mechanical structure to make it easy to assemble. With 125mm port diameter, the biggest in the market, users can easily install and uninstall cameras with large lens through the housing.

Marelux housing is built using uniquely anodized aluminum alloy which provides superb scratch resistance, sea water erosion durability as well as the attractive options of various surface colors. The housing maintains a perfect balance between sturdy body and lightweight. It has the best-in-class ergonomics with all the camera controls readily available at your fingertips including AF-ON and Q Menu. The housing front has the EF and RF lens release button which makes the exchanges of EF and RF lens super easy.

Marelux housing can be connected to other innovative products made by Marelux, such as SNAP (Smart Nautical Application Platform), Smart View Finder etc., making diving and underwater photography easier, safer and more enjoyable.

Key Features:

Housing Dual Locking System

The dual locking sytem design provides security and minimal effort to lock your housing. In addition, it has a special feature which prevents accidental unlocking but still very easy to open if you need to change your battery or memory card.

Port Locking Design

Secures your port and port extensions in place with one simple click with its built-in locking system.

Flash Trigger (Optional)

The flash trigger converts the electronic signal from your camera into a light signal which triggers your strobe. The flash trigger also has a very long battery life - 10,000 triggers with the (2) CR2032 batteries

Camera Plate

The housing comes with a quick release camera plate which makes camera installation a breeze. Also, the plate locks in place to the housing and can be easily be installed and removed. Once in place, the camera is secure to the housing.

Technical Specification

- Material: Anodized Aluminum Alloy

- Dimensions: 354(W) x 181mm(H) x 149mm(D)

- Weight In Air: 3.06kg

- Depth Rating: 100m

- Port Mount: Series 5

Included Items

- Housing Mounting Ball x 2

- Housing O-Ring x 1

- Leak detector with CR2032 battery x 1

- Lubricant x 1

- Set of Allen keys x 1

- Housing Hard Case x1
