SeaLife - SportDiver Underwater Smartphone Housing

SeaLife - SportDiver Underwater Smartphone Housing for iPhone® and Android - SL400

The SportDiver can hold most Android models and all iPhones from iPhone 7 & up. Please review our SportDiver compatibility checker and fit guide.

FINALLY BACK IN STOCK - ORDER NOW - FREE SHIPPING

The SeaLife SportDiver underwater housing works with most Android models & iPhone® 7 and up.

The SportDiver housing will allow divers to take photos and video with their iPhone down to 130 feet or 40 meters. The SportDiver can encase iPhone 7, 7 Plus, 8, 8 Plus, X, Xr, Xs, Xs Max, 11, 11 Pro Max, SE (2nd Gen), 12, 12 Mini, 12 Pro, 12 Pro Max, 13, 13 Mini, 13 Pro, 13 Max, 14, 14 Pro, 14 Pro Max, and 14 Plus models. The heavy-duty housing is constructed of Polycarbonate, stainless steel, aluminium and optical grade glass. And while the SportDiver housing is “heavy-duty”, it is not heavy, weighing less than 1.5 pounds (641 grams), and is lightweight for travelling and offers almost neutral buoyancy in water depending on which iPhone model is used.

The SportDiver is easy to hold and use and offers a large shutter lever and rear control buttons for easy operation, even with dive gloves. Snorkelers and Divers can get more creative with their photos or video shot by using advanced camera settings. Adjust Zoom, Exposure (EV), Auto/Manual Focus, White Balance, Tint, Lens selection, RAW+JPEG mode, Live Photo and Background Blur (on available iPhone models).

The SportDiver housing includes the free SeaLife SportDiver camera app for iOS 12 and up and unlike other smartphone housing apps, there are no annoying in-app purchases or ads. You can easily switch between photo and video mode. The SportDiver App uses the iPhone camera technology native to each iPhone® model.

The App Playback mode shows full-size photos and videos with vertical thumbnail strip to easily locate your images. Videos start playing automatically when selected. All files are also saved to iPhone camera roll. The SportDiver housing automatically connects to your iPhone and the SportDiver app using Bluetooth® Low Energy (LE) 5 wireless technology. No cables or buttons touch the phone and offer ultra-low power consumption for both the phone and the housing which is powered by two AAA batteries that last over 50 hours of continuous use.

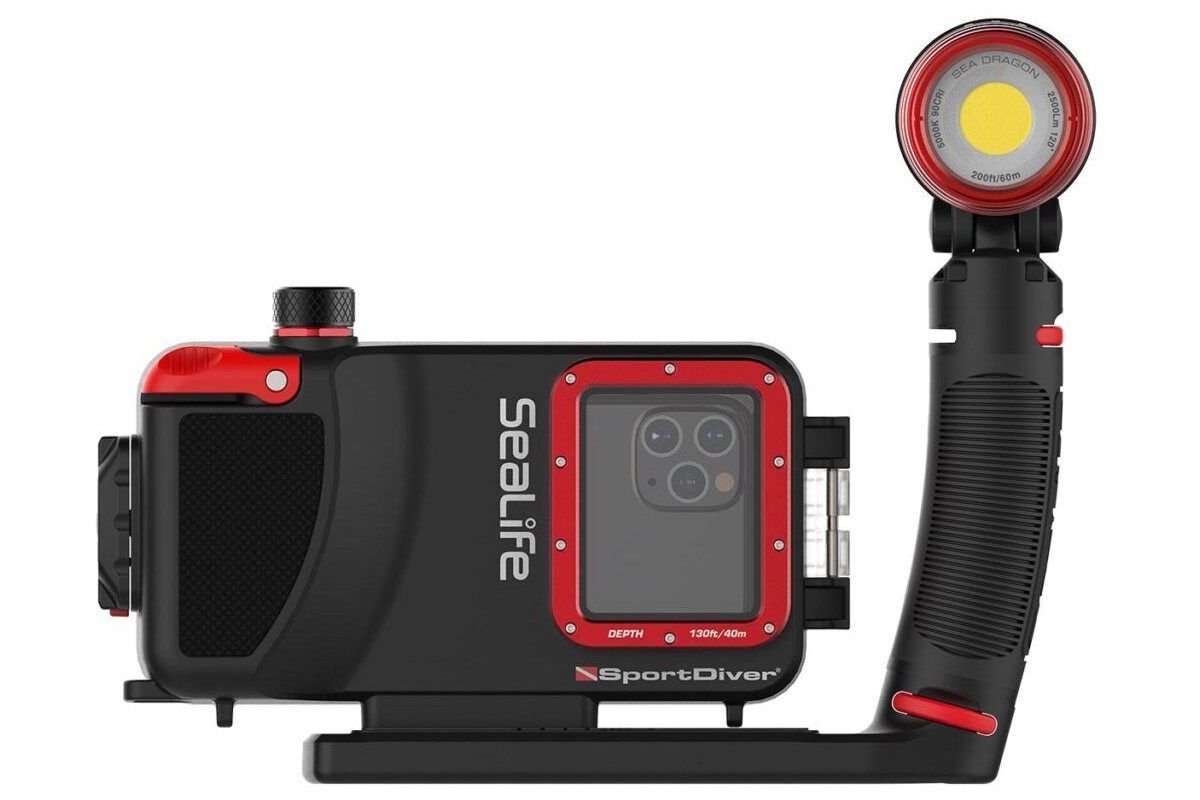

For enhanced imaging results, a removable underwater colour-correction filter is included with the SportDiver which restores natural underwater colours. The filter easily attached or removes underwater and includes a safety tether to prevent loss. The SportDiver housing features triple 1/4-20 tripod mounts which mount to any light or light tray with standard tripod threads such as SeaLife’s range of Sea Dragon underwater photo/video lights.

For the phone’s safety and protection, the SportDiver has a sturdy holding spring and rubber grip tabs that securely hold the smartphone in place and add shock-protection. The SportDiver has “Dual Leak Alarms” which include an internal moisture alarm and a vacuum pressure alarm which alert the diver with on-screen warnings, audio and LED signal in the unlikely event the waterproof seal is compromised and there’s a loss of housing pressure or moisture is detected. The door of the SportDiver is sealed with a TPE O-ring and a robust cam-lock sealing latch that easily and securely locks the waterproof door. To prevent interior fogging from residual moisture, the SportDiver uses the anti-fogging agent “Moisture Muncher” capsule which prevents fogging and internal condensation.

Features

• Works with iPhone® 7 to 14, 14 Pro, 14 Pro Max, 14 Plus as well as SE (2nd Gen) running iOS 12* or higher

• Works with iPhone®, Samsung Galaxy and most other Android phones.

• Easy control – Large shutter lever and rear control buttons for easy operation, even with dive gloves

• Access popular camera settings – Get creative with your shot by using advanced settings

• Shoot photos or record video – Easily switch between photo and video mode

• Dual Leak Alarms – Includes internal moisture alarm and internal vacuum pressure alarm

• Removable underwater colour-correction filter for bright, colourful underwater photos & videos

• Includes SeaLife SportDiver camera app for iOS 12* & up – Free download in App Store and Play store

• Bluetooth® wireless technology – Housing automatically connects to your iPhone®

• Holding spring and rubber grip tabs securely holds iPhone® in place and adds shock-protection

• Expandable with Sea Dragon underwater photo-video lights

• Triple 1/4-20 tripod mounts – Mounts to Flex-Connect or any tray with standard tripod threads

• Cam-lock sealing mechanism easily and securely locks the waterproof door

• Powered by two AAA batteries that last over 50 hours of continuous use

• Anti-fog design when SL911 Moisture Muncher capsule is used

• Depth rated to 130ft / 40m – Each housing is individually depth tested

• Playback photos and videos – App Playback mode shows full-size photos and videos with
  vertical thumbnail strip to easily located your shots

Specifications

• Compatible iPhones®: Compatible iPhones®:14, 14 Pro, 14 Pro Max, 14 Plus, 13, 13 Pro, 13 Pro Max, 13 Mini, 12, 12 Pro, 12 Pro Max, 12 Mini, 11, 11 Pro, 11 Pro Max, X, Xr, Xs, Xs Max, 8, 8 Plus, 7, 7 Plus, SE (2nd Gen).

• Works with iPhone®, Samsung Galaxy and most other Android phones.

• Depth rating: 130’ (40 m)

• Power: 2x AAA batteries (alkaline or NiMH)

• Battery Life: 50 hours

• Two LED Indicators: Leak Alarm

• pressure indicator: Flashing green when vacuum pressure has not been applied; Solid green when vacuum pressure is okay; Flashing red if a leak is detected

• Power / Wireless connection status: Flashing blue when powered on and not wirelessly connected; Solid blue, when powered on and wirelessly, connected

• Wireless technology: Bluetooth® Low Energy (LE)

• App language: English

• Instruction manual: Includes printed Instruction Manual in English. Spanish, German, French, Italian and Dutch languages may be downloaded from SeaLife website

• Controls: Shutter, Mode, Up (Zoom / Focus +), Down (Zoom / Focus -), Playback and Camera Settings

• Operating temp: Underwater: 33°F to 110°F

• Land: 0°F to 120°F

• Storage temp: -20 degrees F to +140 degrees F

• O-ring: Main O-ring: TPE (requires included silicone lube)

• Lens port: Optical glass lens port; Lens frame allows attachment of colour-correction filter while underwater

• LCD window: Optical grade polycarbonate full-screen display window (Screen Protector available – sold separately)

• Tripod mount: Three standard ¼-20 tripod threads to attach accessories

• Lanyard: SeaLife deluxe padded lanyard with swivelled attachment clip

• Material: Polycarbonate housing with 304-316 stainless steel and hard-anodized T6061-grade aluminium metal hardware

• Dimensions: External: 8.4” x 4.9” x 2.2” (213.1 mm x 125.7 mm x 54.8 mm)

• Internal: 6.35″ x 3.15″ x 0.60” (160 mm x 79 mm x 15mm)

• Weight: 22.6 oz. (641g) UW housing only – without batteries, filter, Moisture Muncher
  24.0 oz. (680g) UW housing only – with batteries, filter, Moisture Muncher, 10x med. grip tabs

• Buoyancy: Positive 2.8 oz. (80g) UW housing only – with batteries, red filter and Moisture Muncher

• Subtract the weight of the phone to calculate total UW buoyancy in seawater

• Warranty: 1-year limited warranty or longer depending on local government regulations

• Certification: CE, ROHS, FCC (FCC ID: 2ACKF-SL400)

• SportDiver App: for iOS and Android

• App compatibility: iOS 12 and up*

• Modes: Photo – captures a single image with each push of the shutter

• Video – Push shutter to start/stop video recording

• Playback – View photos and videos

• Settings – Adjust iPhone® camera settings (See below)

• Settings: Exposure Value (EV) – -3.0 top +3.0 in .3 stop increments

• Focus – Automatic or Manual

• White Balance (WB) – Auto or manual (3000K to 8000K)

• Tint – +150 to -150 colour tint

• Lens – Select single or multiple lenses (Depends on phone model)

• RAW+JPEG Capture – RAW image file (Depends on phone model)

• Live Photo – On or Off (Records 1-sec video clip before image capture)

• Background Blur – On or Off (Same as portrait mode on multi-lens iPhones®)

• Power Save – Off, 1 min, 2 min or 5 min. (Dims screen – push any button to wake-up)

• Display Brightness – From 10% to 100%

• Leak Alarm – On or Off (Audio alarm and warning message if the leak is detected)

• Delete function – Yes – push the OK button twice to delete a selected file in Playback mode

• Battery level indicator – Indicates the remaining battery life of iPhone® and UW housing

• Zoom – Yes – from 1x to 10x in 0.5x increments File Location: Photos and videos are saved to iPhone® Photos app for editing and sharing

In The Box

• 1x SportDiver Underwater iPhone Housing

• 1x Underwater Colour-correction filter

• 1x Vacuum pump

• 1x Rubber Grip Tabs (12x Small, 12x Medium and 12x Large)

• 1x Spare O-rings (1x Main O-ring and 1x Vacuum Check Port O-ring)

• 1x O-ring lubricant

• 1x O-ring removal tool

• 1x Deluxe wrist strap with clip

• 1x Moisture Muncher sample pack (1 capsule)

• 1x AAA alkaline batteries (2)

• 1x EVA Carry Case

• The SportDiver app supports the present and previous versions of OS, the app is updated according to new versions of the OS.  Some phones may not have all the settings and functions because of hardware/software limitations.

iOS Settings:

Lens: Select single or multiple lenses (Depends on phone model)
Focus: Automatic or Manual
White Balance (WB): Auto or manual (3000K to 8000K) in 100K increments
Tint: +150 to -150 color tint in 10-unit increments
Exposure Value (EV): -3.0 top +3.0 in .3 stop increments
RAW+JPEG: Capture RAW image file (Depends on phone model)
Video Resolution: 4K, 1080p or 720p
Photo + 3 sec. Video: On or Off (Starts recording 1.5 seconds before image capture)
Portrait (Bokeh): On or Off (Same as portrait mode on multi-lens )
Power Save: Off, 1 min, 2 min or 5 min. (Push any button to wake-up)
Display Brightness: From 10% to 100%
Leak Alarm: On or Off (Audio alarm and warning message if leak is detected)
On-screen data: Displays exposure settings (can be enabled or disabled)

Android Settings:

Lens: Select single or multiple lenses (Depends on phone model)
Focus: Automatic or Manual
Shutter Speed: Auto or manual (1/30 sec to 1/2000 sec)
ISO: Auto or manual (50 to 3200)
Exposure Value (EV): -3.0 top +3.0 in .3 stop increments
White Balance (WB): Auto, Manual, UW Deep, UW Shallow, Daylight, Cloudy
Manual WB: (2000K to 1000K) in 100K increments
3-Shot Burst: Captures 3 images within 1 second
Photo Resolution: Select from phone’s native photo resolution settings
Video Resolution: 4K, 1080p or 720p
Color Effects: Off, Black & White, Negative, Sepia
RAW+JPEG: Capture RAW image file (Depends on phone model)
Photo + 3 sec. Video: On or Off (Records 1 sec video clip before image capture)
Portrait (Bokeh): On or Off (Same as portrait mode on multi-lens )
Power Save: Off, 1 min, 2 min or 5 min. (Push any button to wake-up)
Display Brightness: From 10% to 100%
Leak Alarm: On or Off (Audio alarm and warning message if leak is detected)
On-screen data: Displays exposure settings (can be enabled or disabled)

Important: Some settings may not be available depending on the phone make/model.
Some settings are blocked-out (not accessible) depending on other conflicting settings.
Portrait (background blur) setting is only available with multi-lens iPhones.
Lens selection setting may not include all available phone lenses.
Telephoto lens not available for Android phones.
Check Apple App Store and Google Play store for any SportDiver app updates.
